Bosch Rexroth 0 822 334 506 Pneumatic Cylinder – 25 mm Bore / 125 mm Stroke – 10 Bar
0 822 334 506
CPG number: CPG-0000173
Compatible / Alternate Part Numbers: 0822334506 · 0-822-334-506 · MNI-DA-25-0125-D-31-01-1-00-000-00
- Condition
- New Surplus
- Availability
- In Stock
- Lead time
- Price and condition confirmation required before publication.
- SKU
- CPG-0000173
Need a larger quantity?
Send us your request and we’ll quickly confirm availability and our best price.
Product description
Bosch Rexroth / AVENTICS MNI series double-acting pneumatic mini cylinder, ISO 6432, with 25 mm bore, 125 mm stroke and operating pressure up to 10 bar.

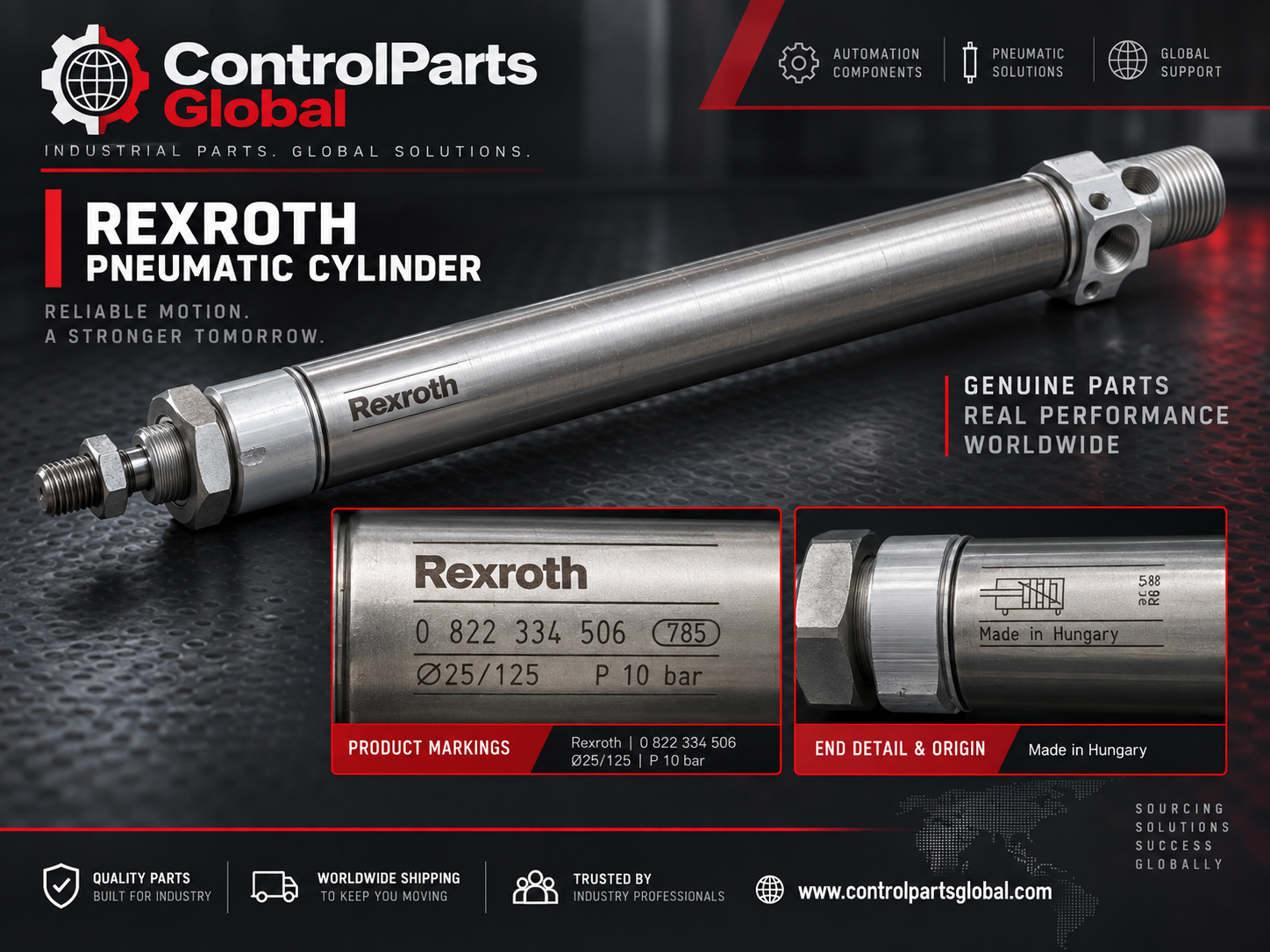

Bosch Rexroth industrial pneumatic cylinder, part number 0 822 334 506 (0822334506). Verified distributor and MNI-series documentation identify it as an ISO 6432 double-acting mini cylinder with a 25 mm bore, 125 mm stroke, single-ended 10 mm piston rod, G 1/8 pneumatic ports, M10x1.25 piston-rod thread and M22x1.5 cylinder mounting thread. The product is marked for operation up to 10 bar and Made in Hungary. Exact overall dimensions and a confirmed current replacement part were not found. Condition requires manual confirmation before publication.
Key features
- MNI series ISO 6432 mini cylinder
- Double-acting operation
- 25 mm bore and 125 mm stroke
- G 1/8 pneumatic ports
- Maximum operating pressure 10 bar
- Made in Hungary
Technical specifications
| Bore / Alésage | 25 mm |
|---|---|
| Series / Série | MNI |
| Stroke / Course | 125 mm |
| Standard / Norme | ISO 6432 |
| Operation / Fonctionnement | Double acting / Double effet |
| Visible code / Code visible | 785 |
| Maximum pressure / Pression maximale | 10 bar |
| Piston rod thread / Filetage de tige | M10x1.25 |
| Piston rod diameter / Diamètre de tige | 10 mm |
| Rod configuration / Configuration de tige | Single-ended / Tige simple |
| Country of manufacture / Pays de fabrication | Hungary / Hongrie |
| Pneumatic ports / Raccordements pneumatiques | G 1/8 |
| Cylinder mounting thread / Filetage de montage | M22x1.5 |
Typical applications
- Industrial automation
- Pneumatic linear motion
- Clamping and lifting applications
Product identification
| Product type | Pneumatic cylinder / Vérin pneumatique |
|---|---|
| Country of origin | HU |
