PULS

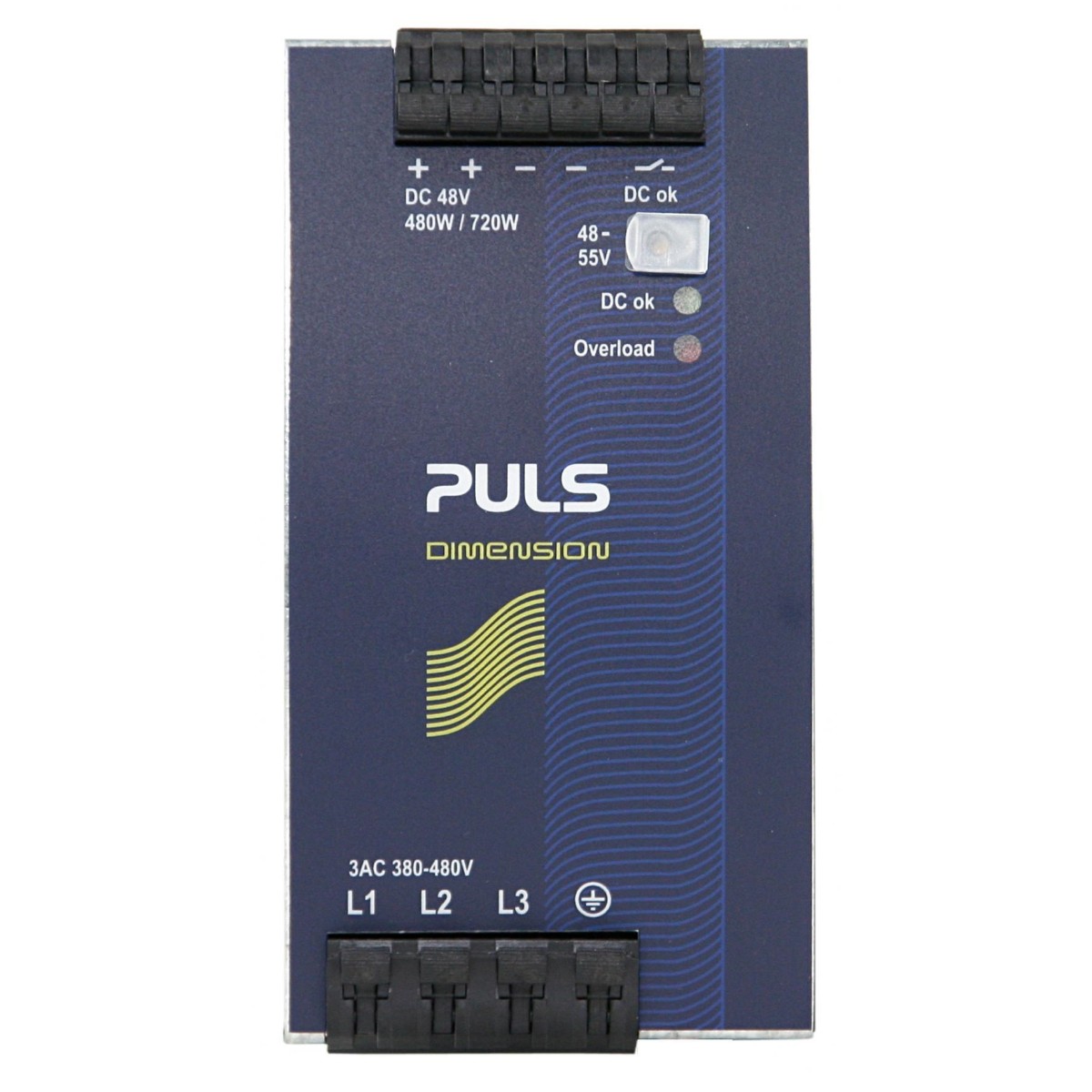

480W, 48V, 10A 3-phase DIN rail power supplyQT20.481
CPG number: CPG-0000037
- Condition
- New Surplus
- Availability
- In Stock
- Lead time
- SKU
- CPG-0000037
- Manufacturer part number
- QT20.481
Estimated price in USD. Payment is charged in CAD.
Product description
480W, 48V, 10A 3-phase DIN rail power supply from PULS' Q-Series, featuring wide-range 3AC 380-480V input, 95.4% efficiency, and 50% BonusPower®.
The PULS QT20.481 is a Q-Series AC/DC DIN rail power supply designed for 3-phase systems. It provides a continuous output power of 480W with an adjustable output voltage from 48V DC to 55V DC, delivering 10A at 48V DC and 8.7A at 55V DC. The unit accepts a wide-range 3-phase AC input of 380-480V (±15%) or 323-576Vac, suitable for 380Vac / 400Vac / 415Vac / 440Vac / 480Vac / 500Vac / 525Vac nominal systems with a frequency range of 47-63Hz. It boasts a high full-load efficiency of 95.4% and includes active Power Factor Correction (PFC). A key feature is 50% BonusPower®, providing up to 720W (150% of rated power) for up to 4 seconds, supporting short-term peak loads. The power supply also incorporates an active input inrush current limitation and a potential-free DC-OK relay contact for signaling. It is housed in a compact 65mm wide enclosure for DIN rail mounting and utilizes spring-clamp connections.
Key features
- 3AC 380-480V Wide-range Input
- 95.4% Full Load Efficiency
- 50% BonusPower® (720W for up to 4s)
- Active Power Factor Correction (PFC)
- DC-OK Relay Contact
- Adjustable Output Voltage 48-55V
- Compact width of 65mm
- Spring-clamp connections
Technical specifications
Electrical Input
| AC Input voltage | 380 - 480 V (± 15%) |
|---|---|
| Input voltage range | 323Vac-576Vac |
| Type of network | 3-phase (3AC) |
| Frequency | 47-63Hz |
| Harmonic correction | active (PFC) |
| Power factor | 0.94 |
| Input inrush current limitation | active |
| Input inrush current | 3 A |
| External input fuse recommendation | B-6 A / C-3 A |
| Hold time | 22ms (buffer time at 3x480Vac input), 22ms (buffer time at 3x400Vac input) |
Electrical Output
| Nominal voltage | 48 Vdc |
|---|---|
| Adjustment range | 48 - 55 V |
| Output current range | 10 - 8.7 A |
| Output current at 48V | 10 A |
| Output current at 55V | 8.7 A |
| Output power | 480 W (continuous) |
| Power reserves (BonusPower®) | 50% (720W for up to 4s) |
| Efficiency | 95.4% (Full Load) |
| Ripple and noise voltage | max. 100 mVpp |
| Output overvoltage protection | 57Vdc typ. / 60Vdc max. |
| Overload / short-circuit current | min. 10A (max. 11.5A) |
Mechanical
| Dimensions (WxHxD) | 65 x 124 x 127 mm |
|---|---|
| Weight | 870 g |
| Mounting type | DIN rail mounting |
| Connection type | Spring-clamp connections |
Environmental
| Operating temperature | -10°C to 70°C |
|---|---|
| Derating | 12 W/°C for >+60 °C |
Product identification
| Series | Q series |
|---|---|
| Product family | DIMENSION series |
| Product type | AC/DC Power supply unit (PSU) / converter |
| Manufacturer status | active |
| Dimensions | 65 x 124 x 127 mm (WxHxD) |
| Weight | 870g |
| Mounting type | DIN rail mounting |
| Operating temperature | -10°C to 70°C (with derating), full power up to +60°C |
