PULS

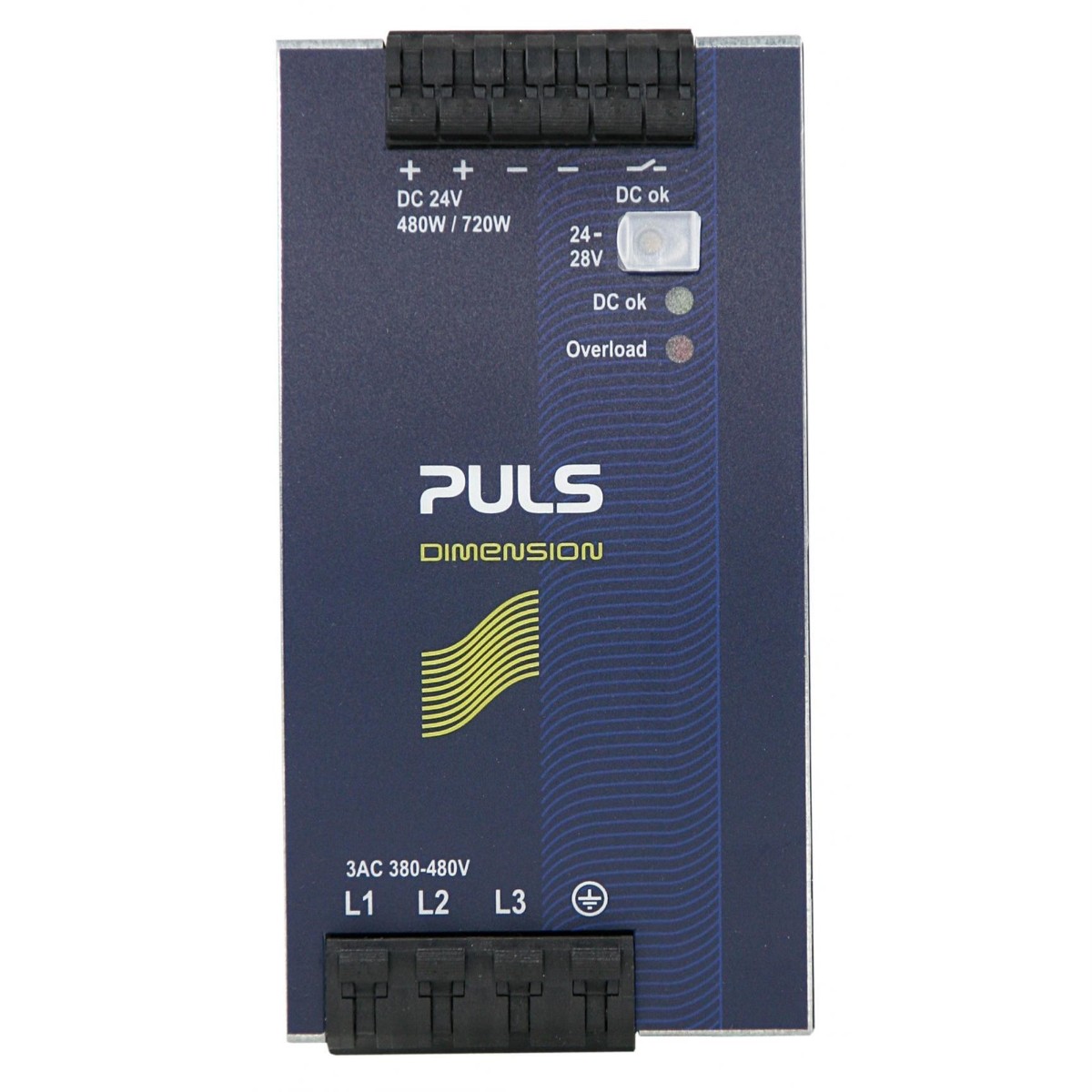

QT20.241 | 480W, 24V, 20A 3-phase DIN rail power supply
CPG number: CPG-0000036
- Condition
- New
- Availability
- In Stock
- Lead time
- SKU
- CPG-0000036
- Manufacturer part number
- QT20.241
Estimated price in USD. Payment is charged in CAD.
Product description
The QT20.241 is a 480W, 24V, 20A three-phase DIN rail power supply from PULS, designed for industrial applications. It features a wide-range input of 380-480 VAC and delivers a stable 24VDC output. This unit offers high efficiency and is mountable on a DIN rail.
The PULS QT20.241 is an industrial-grade AC DIN rail power supply from the DIMENSION Q series, providing a single 24V output with a maximum current of 20A, culminating in 480W of power. It accepts a wide three-phase input voltage range of 323 ~ 552 VAC (or 380-480 V +15% 50/60 Hz), with the capability for two-phase operation at slightly different parameters. This power supply boasts an efficiency of 95% and includes features like adjustable output, load sharing, and Power Factor Correction (PFC). Its compact design with a width of only 65mm and a weight of 2.01 lbs makes it suitable for space-constrained industrial enclosures. The unit is designed for DIN rail mounting and features quick-connect spring clamp terminal connections. It is built for extra-long lifetime and high reliability, indicated by MTBF calculations, making it ideal for demanding industrial environments.
Key features
- 480W, 24V, 20A output power
- 3-phase wide-range input (323 ~ 552 VAC)
- DIN rail mountable
- 95% efficiency
- Adjustable Output, Load Sharing, PFC features
- Compact design with 65mm width
- Extra long lifetime
- IP20 protection
Technical specifications
Electrical Characteristics
| Input Voltage (3 Phase) | 323 ~ 552 VAC |
|---|---|
| Input Voltage (3 Phase) | 380-480 V +15% |
| Input Current (3 Phase) | 0.65-0.9 AMP |
| Input Frequency | 50/60 HZ |
| Output Voltage | 24V |
| Output Voltage Range | 24-28 VDC |
| Output Current (Max) | 20A |
| Output Current | 17.5-20 AMP |
| Power (Watts) | 480W |
| Efficiency | 95% |
| Efficiency | 95% Full Load and Excellent Partial Load |
| Input Type | 3-Phase |
| Output Count | 1 |
Mechanical Characteristics
| Mounting Type | DIN Rail |
|---|---|
| Width | 65mm |
| Weight | 2.01 lbs |
| Housing Material | Aluminum alloy with zinc-plated steel cover |
| Terminal Connections | Quick-connect spring clamp |
Environmental Characteristics
| Operating Temperature | -10°C ~ 70°C (With Derating) |
|---|---|
| Operating Temperature | -25°C ~ 70°C |
| Protection Rating | IP20 |
Reliability
| Lifetime | Extra Long Lifetime |
|---|---|
| Reliability Metric | MTBF (Mean Time Between Failure) |
Typical applications
- Industrial control systems
- Machine building
- Automation technology
Product identification
| Series | Q series |
|---|---|
| Product family | DIMENSION |
| Product type | AC DIN Rail Power Supply |
| Manufacturer status | active |
| Dimensions | 65mm (width) |
| Weight | 2.01 lbs |
| Mounting type | DIN Rail Mount |
| Operating temperature | -25°C ~ 70°C |
| Protection rating | IP20 |
