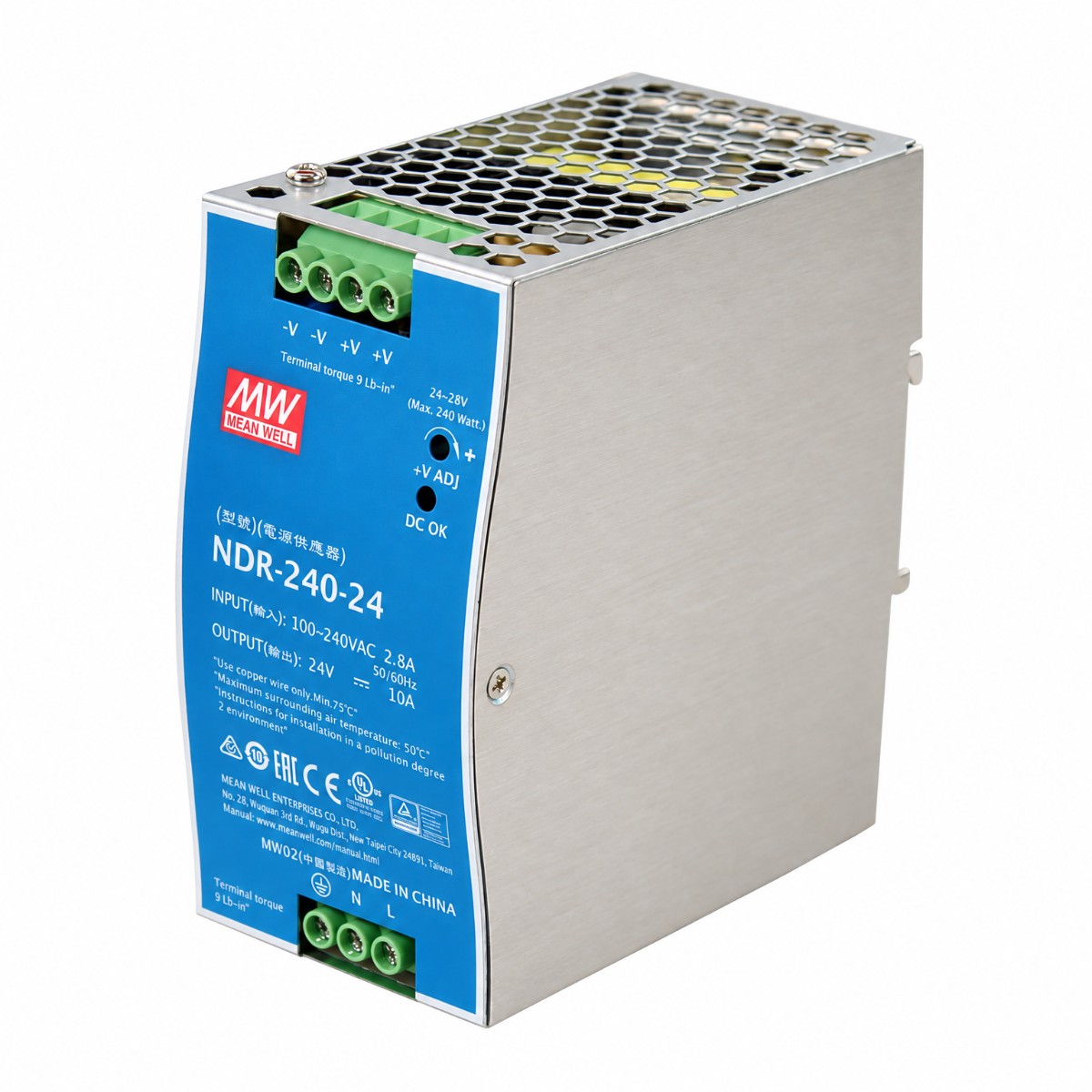

NDR-240-24 MEAN WELL AC/DC DIN Rail Power Supply
NDR-240-24
CPG number: CPG-0000159
- Condition
- New
- Availability
- In Stock
- Lead time
- SKU
- CPG-0000159
Need a larger quantity?
Send us your request and we’ll quickly confirm availability and our best price.
Product description
The NDR-240-24 is an AC/DC DIN Rail Power Supply with one output, delivering 24VDC at 10A for a maximum power of 240W.
The NDR-240-24 is an industrial AC/DC DIN Rail Power Supply featuring a single output that provides 24VDC at 10A, totaling 240W of output power. It supports a universal AC input voltage range from 90VAC to 264VAC and a DC input from 127VDC to 370VDC. The power supply incorporates a built-in active Power Factor Correction (PFC) function and is cooled by free air convection. It is equipped with multiple protection functions including short circuit, overload, overvoltage, and over temperature. Designed for industrial environments, it operates reliably within a temperature range of -20°C to +70°C and can be installed on TS-35/7.5 or TS-35/15 mounting rails. The robust metal housing enhances power dissipation. The output voltage is adjustable.
Key features
- 240W AC/DC DIN Rail Power Supply
- Single output: 24VDC, 10A
- Universal AC input (90VAC to 264VAC) and DC input (127VDC to 370VDC)
- Built-in active Power Factor Correction (PFC)
- Adjustable output
- Protection functions: short circuit, overload, overvoltage, over temperature
- Operating temperature range: -20°C to +70°C
- Metal housing for enhanced power dissipation
Technical specifications
Electrical Characteristics
| Output Voltage | 24V |
|---|---|
| Output Current | 10A |
| Output Power | 240W |
| Input Voltage AC | 90VAC to 264VAC |
| Input Voltage DC | 127VDC to 370VDC |
| Efficiency (Typical) | 88.5% |
| Power Factor Correction (PFC) | Built-in active |
Mechanical Characteristics
| Dimensions (L x W x H) | 113.5mm x 63.0mm x 125.2mm (4.47" x 2.48" x 4.93") |
|---|---|
| Housing Material | Metal |
| Mounting Type | DIN Rail (TS-35/7.5 or TS-35/15) |
| Cooling | Free air convection |
Environmental Characteristics
| Operating Temperature | -20°C to 70°C |
|---|
Certifications & Standards
| Approvals | CB, CE, cULus, TUV |
|---|---|
| Standards Conformance | EN61000-3-2, UL 508 |
Typical applications
- Industrial control systems
- Building automation
- Factory automation
- Telecommunication equipment
Product identification
| Series | NDR |
|---|---|
| Product type | AC/DC DIN Rail Power Supply (PSU) |
| Manufacturer status | active |
| Dimensions | 113.5 mm L x 63.0 mm W x 125.2 mm H |
| Mounting type | DIN Rail (TS-35/7.5 or TS-35/15) |
| Operating temperature | -20 °C to 70 °C |
Certifications & standards
- CB
- CE
- cULus
- TUV
- EN61000-3-2
- UL 508
