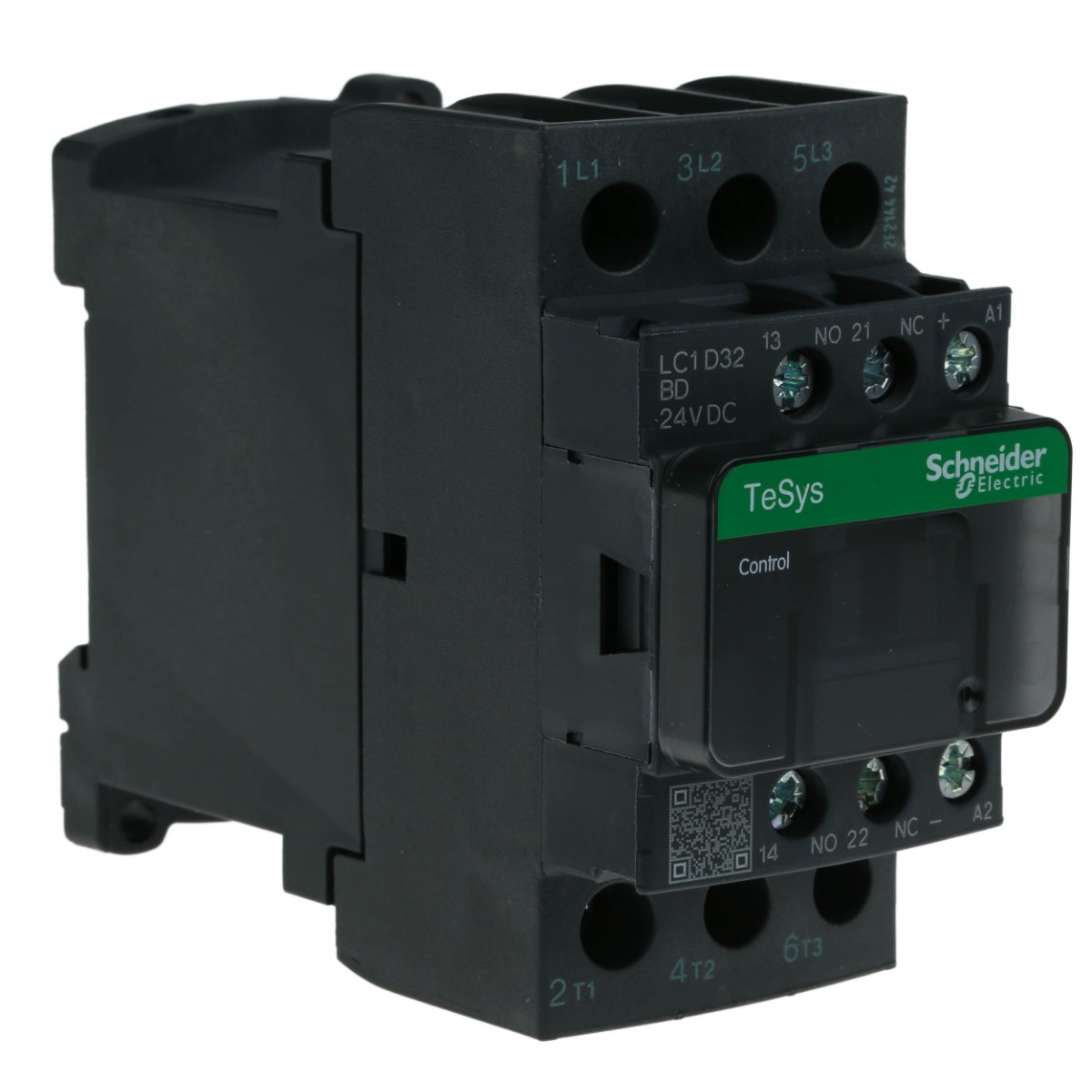

Schneider Electric
LC1D32BD
CPG number: CPG-0000026
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), a 24VDC coil, and rated for 32A, suitable for 480VAC operation.
The Schneider Electric LC1D32BD is an IEC standard nonreversing contactor from the TeSys Deca series, also identified as part of the TeSys D product family. It features 3 power poles configured as normally open (3 NO), and also includes 1 normally open (1S) and 1 normally closed (1Ö) auxiliary contact. This contactor is rated for 32 Amperes and is capable of handling up to 15 kW at 400 V AC3, or 20 HP at 480 VAC. It utilizes a 24 V DC coil for operation and has a short-circuit current rating (SCCR) of up to 100 kA. The device is designed in an open style and offers screw clamp terminals for electrical connection.
| Product Type | Contactor |
|---|---|
| Series | TeSys Deca |
| Product Family | TeSys D |
| Form Factor | Nonreversing |
| Style | Open style |
| Poles | 3 poles (3 NO power poles) |
|---|---|
| Auxiliary Contacts | +1S+1Ö |
| Rated Current | 32 A |
| Rated Voltage (AC3) | 400 V |
| Max Voltage (AC-3/3e) | <=440 V |
| Rated Voltage (AC) | 480 V |
| Rated Power (AC3) | 15 kW |
| Rated Power (480VAC) | 20 HP |
| Coil Voltage | 24 V DC |
| SCCR | up to 100 kA |
| Terminals | Screw clamp terminals |
|---|
| Series | TeSys Deca |
|---|---|
| Product family | TeSys D |
| Product type | Contactor |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (New). Warranty terms are confirmed with the quote or order confirmation.
Schneider Electric

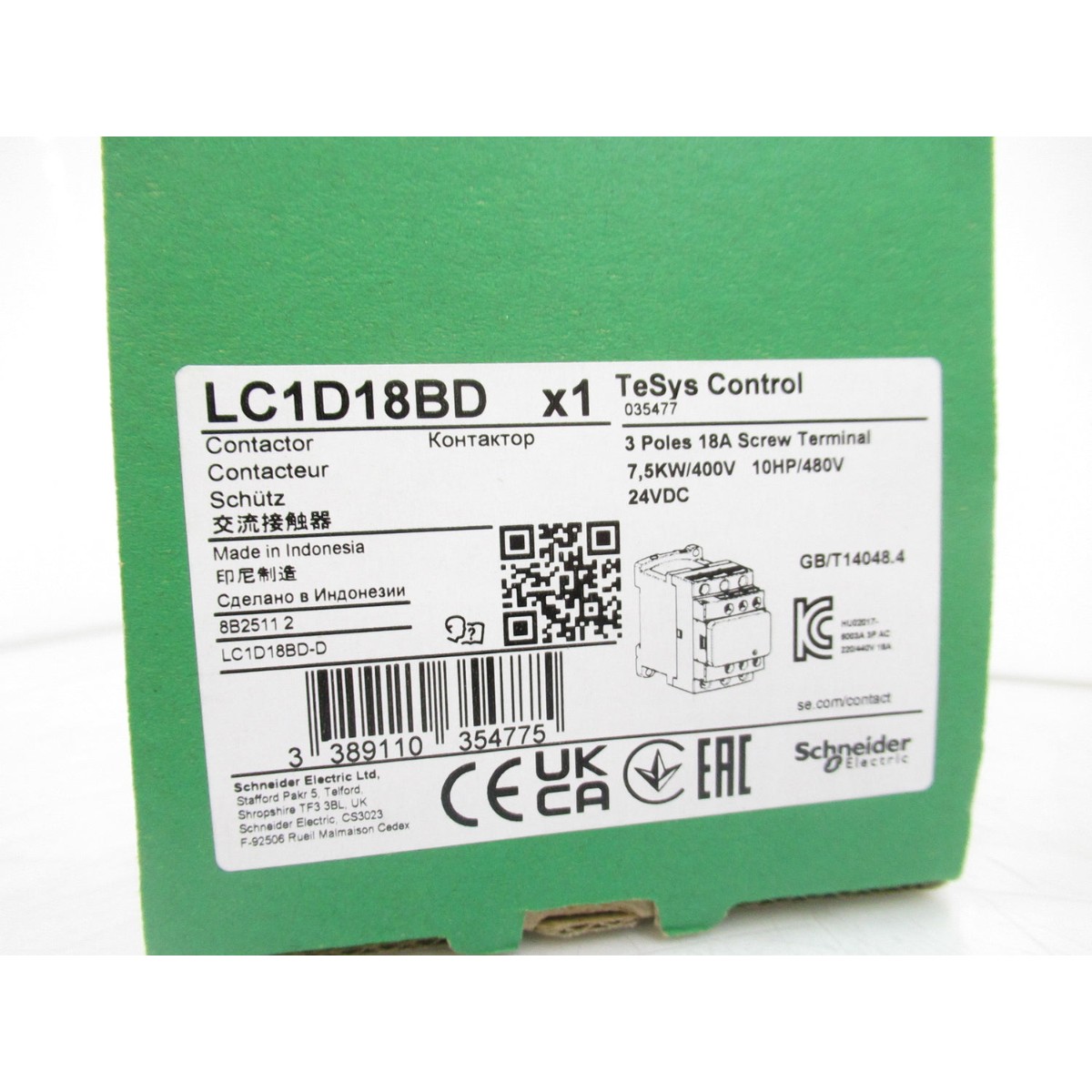

IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric

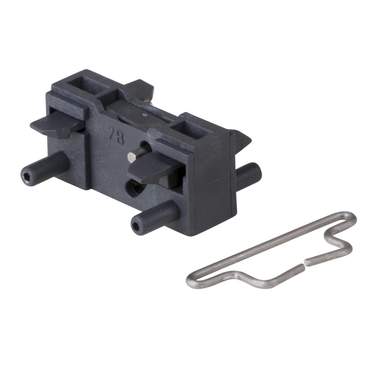

Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric

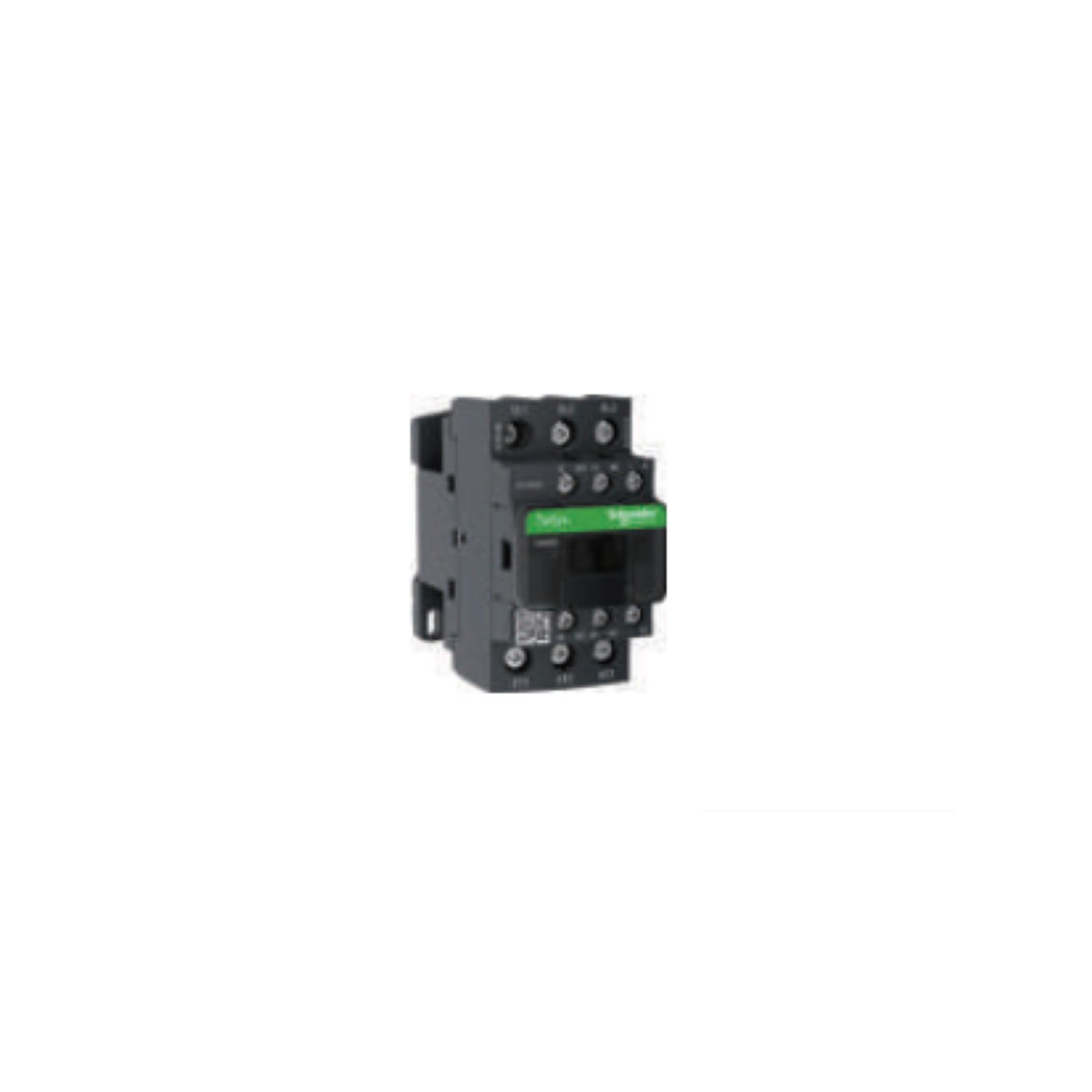

Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
ControlParts Global

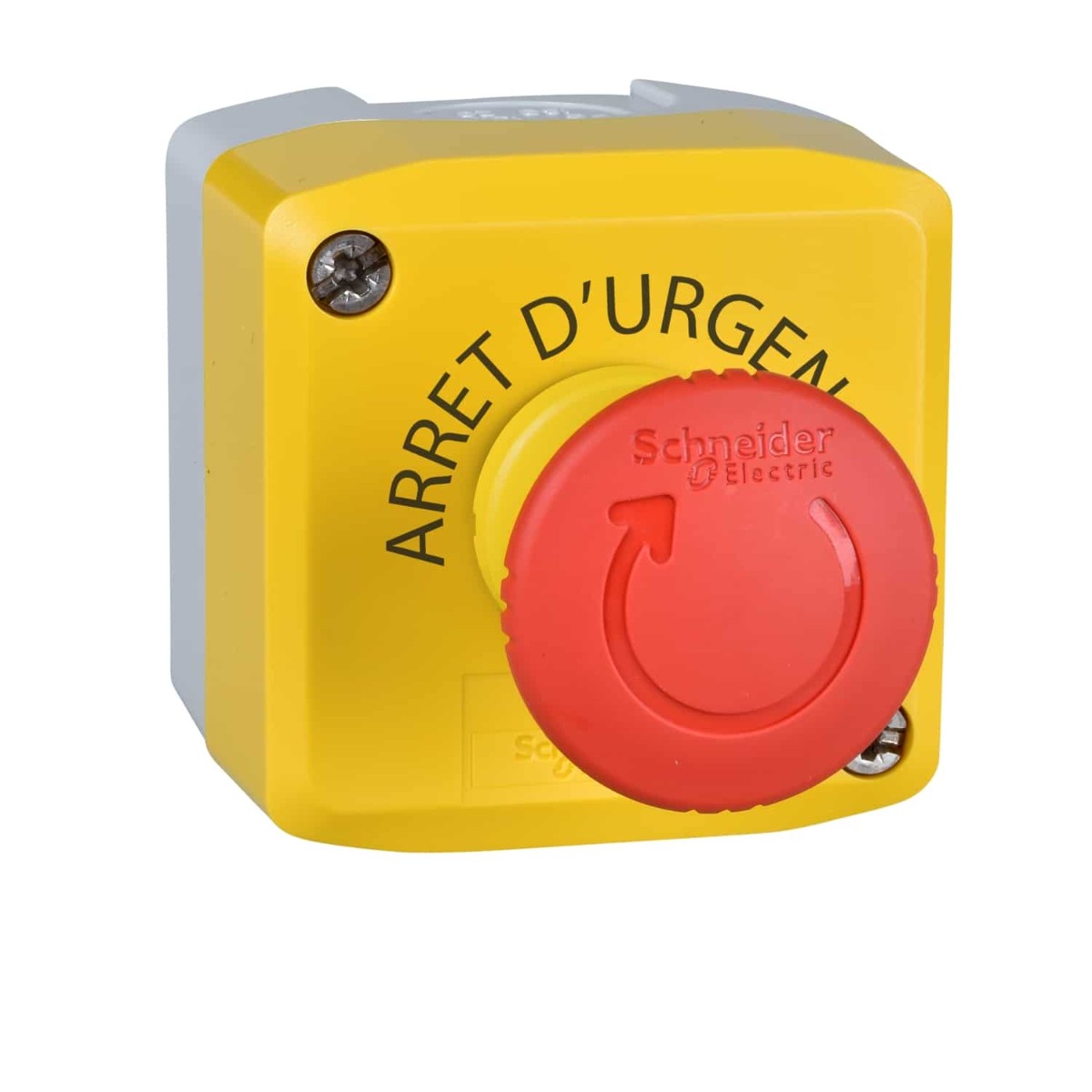

STOP PUSH BUTTONARRET URGENCE
CPG-0000035
Schneider Electric
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric
Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric
Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
Schneider Electric

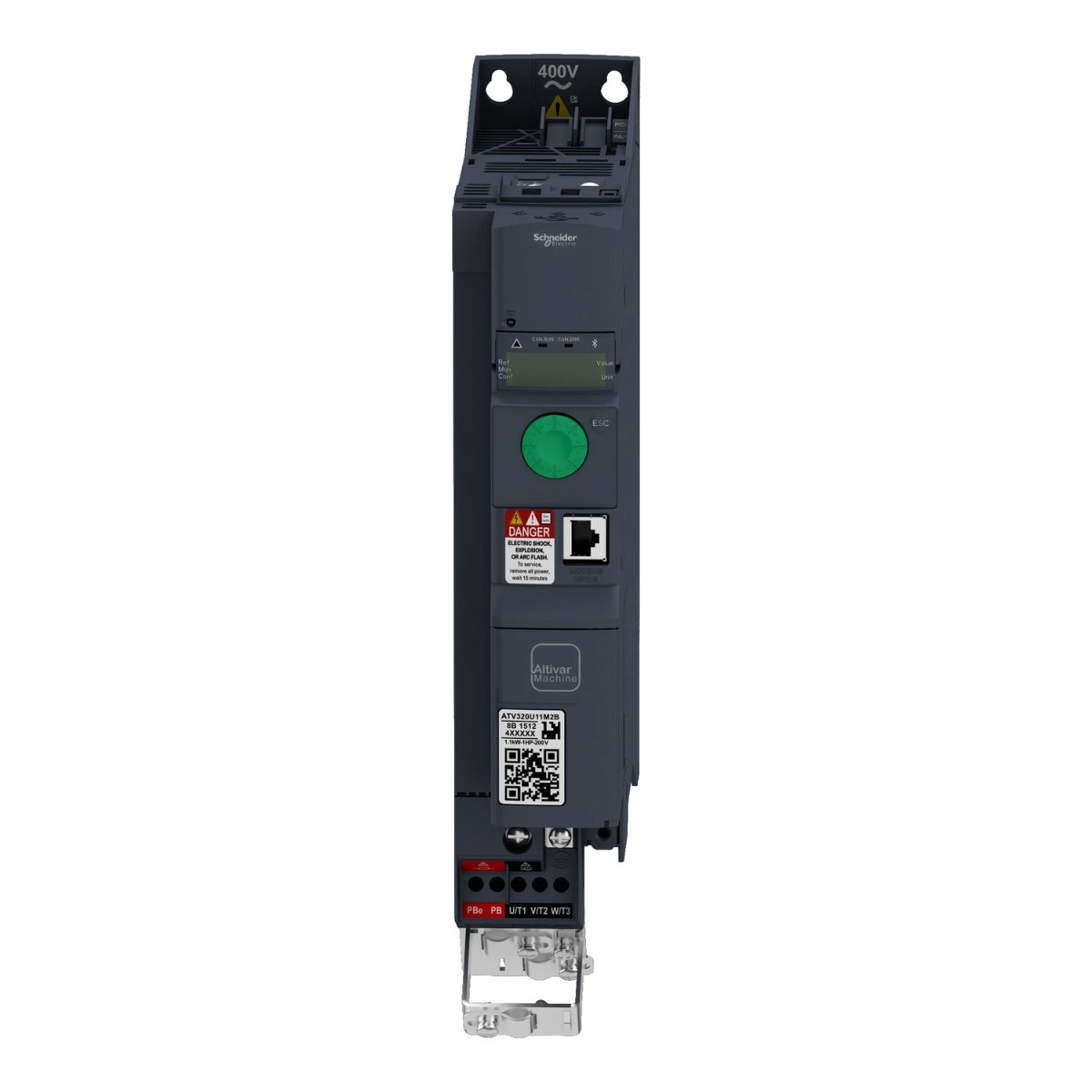

Altivar Machine ATV320 1.5 kWATV320U15N4B
