Schneider Electric
LC1D25F7C
CPG number: CPG-0000031
The LC1D25F7C is a TeSys Deca non-reversing 3-pole contactor with 3 normally open (NO) contacts and a 110V AC 50/60Hz control coil, suitable for three-phase motor control applications up to 25A at 690V AC-3/3e rating.
The TeSys Deca LC1D25F7C is a non-reversing IEC contactor designed for motor control applications. It features 3 poles with 3 normally open (NO) power contacts and typically includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts. The contactor is rated for 25A (AC-3/3e) at up to 690V and 40A (AC-1) at up to 440V, with a power rating of 15HP at 480VAC or 15kW. It utilizes a 110VAC 50/60Hz coil for operation and has screw clamp terminals. The device is open style, suitable for DIN rail mounting, and offers high short-circuit current ratings (up to 100kA SCCR). It complies with standards such as IEC 60335-1, IEC 60947-4-1, and IEC 60947-5-1, and is approved by UL 508, CSA C22.2, and CCC. It features improved fire resistance and dustproof auxiliaries, with a mechanical durability of 15 million cycles.
| Coil Voltage | 110 VAC |
|---|---|
| Coil Frequency | 50/60 Hz |
| Utilization Category | AC-1, AC-3 |
| Short-Circuit Current Rating (SCCR) | Up to 100kA |
| Poles | 3P |
|---|---|
| Power Pole Configuration | 3 NO |
| Auxiliary Contacts | 1 NO - 1 NC |
| Style | Open |
| Mechanical Durability | 15 million cycles |
| Carbon Footprint (Total Lifecycle) | 127 kg CO2 eq |
|---|
| Series | TeSys Deca |
|---|---|
| Product family | TeSys D |
| Manufacturer status | unknown |
| Mounting type | DIN Rail |
| Operating temperature | -5 °C to 60 °C |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (New). Warranty terms are confirmed with the quote or order confirmation.
Schneider Electric
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric
Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric

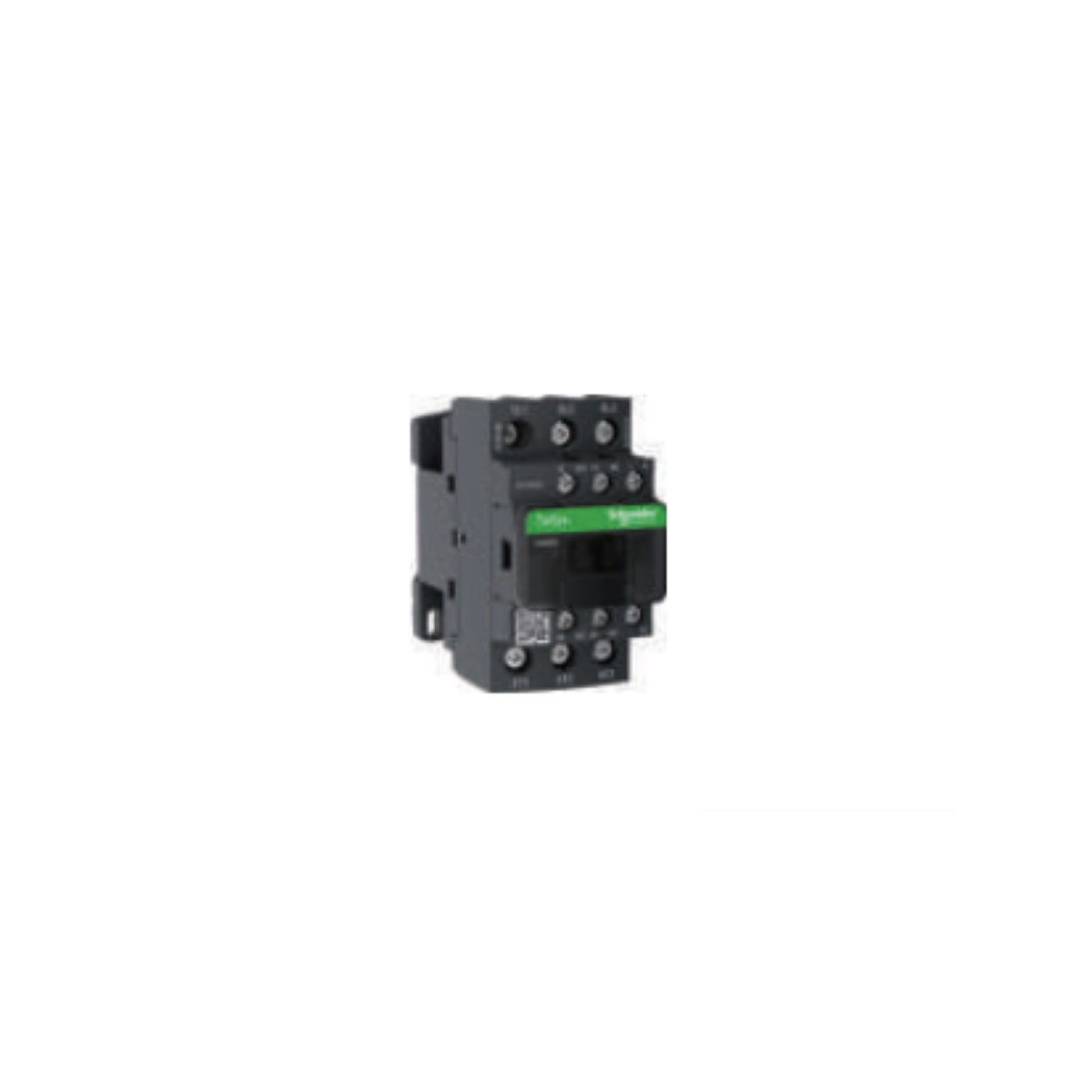

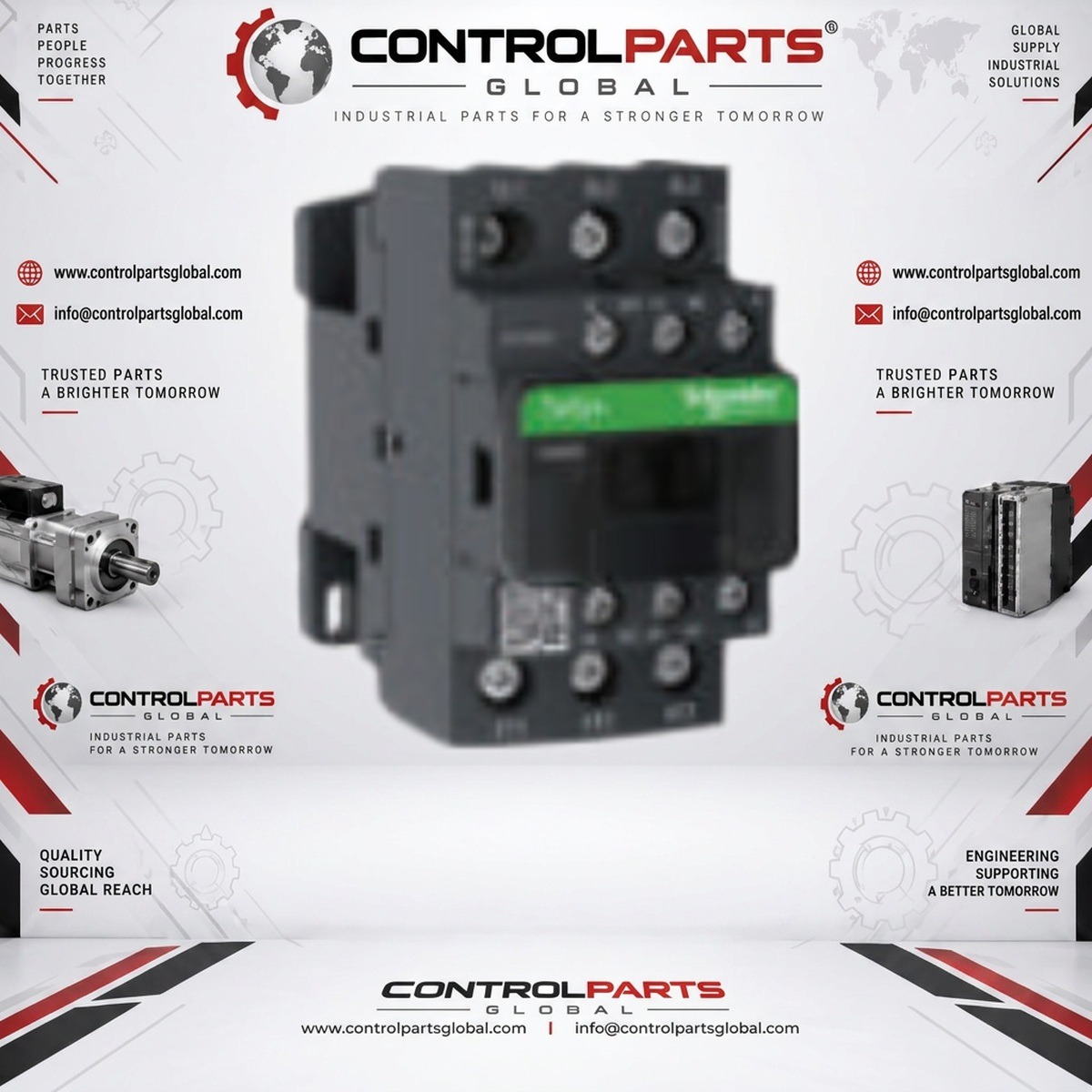

Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
