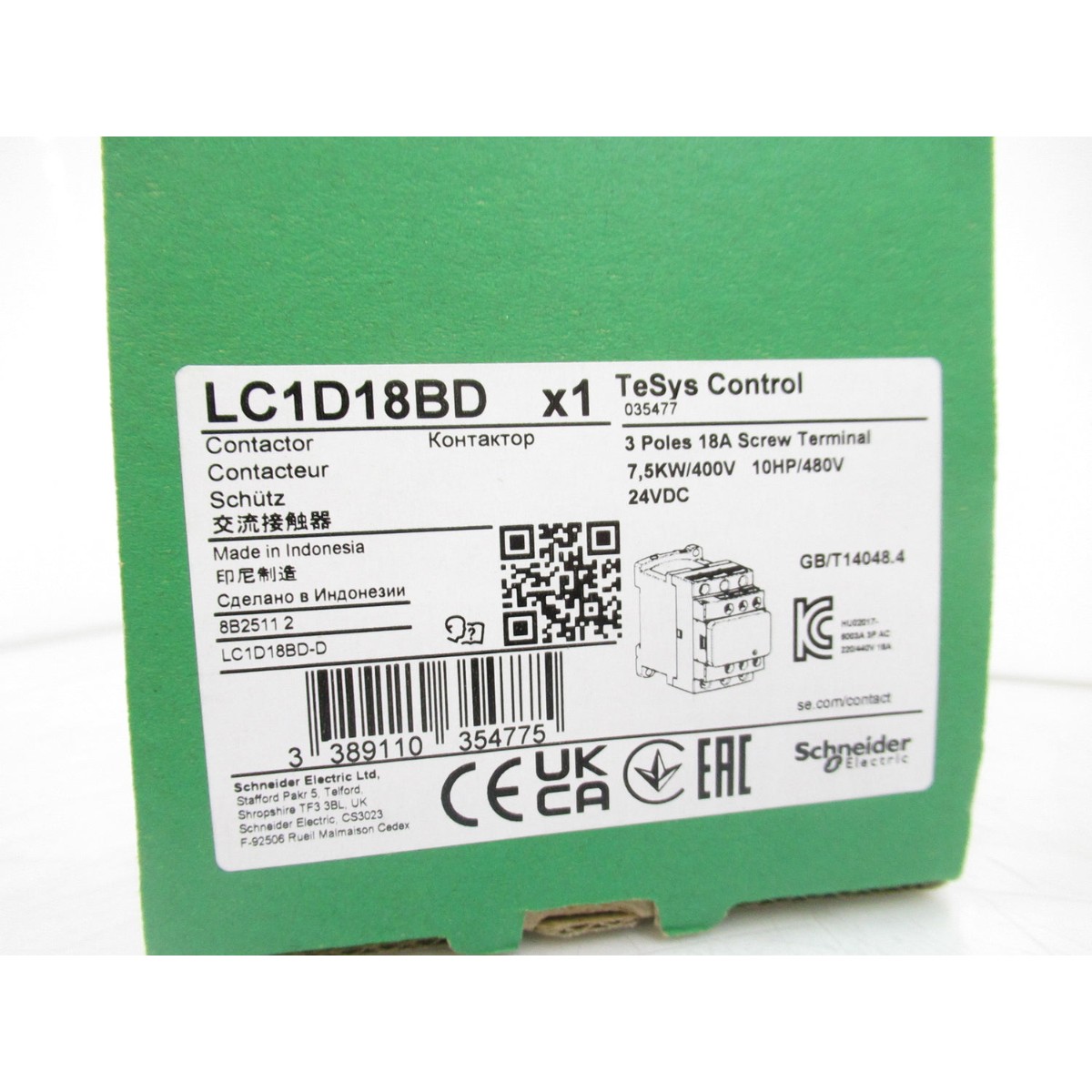

IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD

Product description

IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.

The LC1D18BD is an IEC contactor from the TeSys Deca series, designed for nonreversing motor control applications. It features 3 poles (3 NO power poles) and is rated for up to 18A at 690V AC-3/3e, capable of handling 7.5kW at 400V. The contactor is equipped with a 24V DC coil, which includes a built-in transient suppressor module. This low-consumption DC coil allows direct operation from a low-level DC signal from a computer or PLC without requiring an interposing relay. It also incorporates 1NO+1NC built-in auxiliary contacts, with the NC contact being mirror certified. The connection is made via screw clamp terminals. This contactor is suitable for operating rates up to 3600 cycles/hour and can be used to create motor starters for a wide range of applications.

Key features

• 3 Poles (3 NO) for power switching
• Rated 18A / 690V AC-3/3e for motor control
• 24V DC coil with built-in transient suppressor module
• Includes 1NO+1NC built-in auxiliary contacts (NC mirror certified)
• Connection via screw clamp terminals
• Designed for nonreversing motor control applications
• Capable of up to 3600 cycles/hour operating rate
• High SCCR up to 100kA

Technical specifications

Typical applications

• Motor control applications
• Creating motor starters for various applications
• Integration with PLCs or computers using low-level DC signals
