Schneider Electric
LC1D09F7C
CPG number: CPG-0000027
IEC contactor, TeSys Deca series, nonreversing, 3-phase, 3 NO poles, 9A AC-3/AC-3e, with 110VAC 50/60Hz coil, screw terminals, for applications up to 440V.
The LC1D09F7C is an IEC standard contactor from the TeSys Deca series, designed for nonreversing applications. It features 3 poles configured as 3 normally open (NO) contacts, suitable for 3-phase circuits. This contactor is rated for 9A under AC-3/AC-3e utilization categories for voltages ranging from 0 to 440V. It incorporates a control coil that operates on 110VAC at both 50Hz and 60Hz frequencies. Electrical connections are made via screw terminals, ensuring a secure and reliable connection.
| Coil Voltage | 110VAC 50/60Hz |
|---|---|
| Number of Poles | 3P (3 NO) |
| Utilization Category | AC-3/AC-3e |
| Style | Nonreversing |
|---|
| Series | TeSys Deca |
|---|---|
| Product family | TeSys Deca |
| Product type | IEC Contactor |
| Manufacturer status | unknown |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (New). Warranty terms are confirmed with the quote or order confirmation.
Schneider Electric

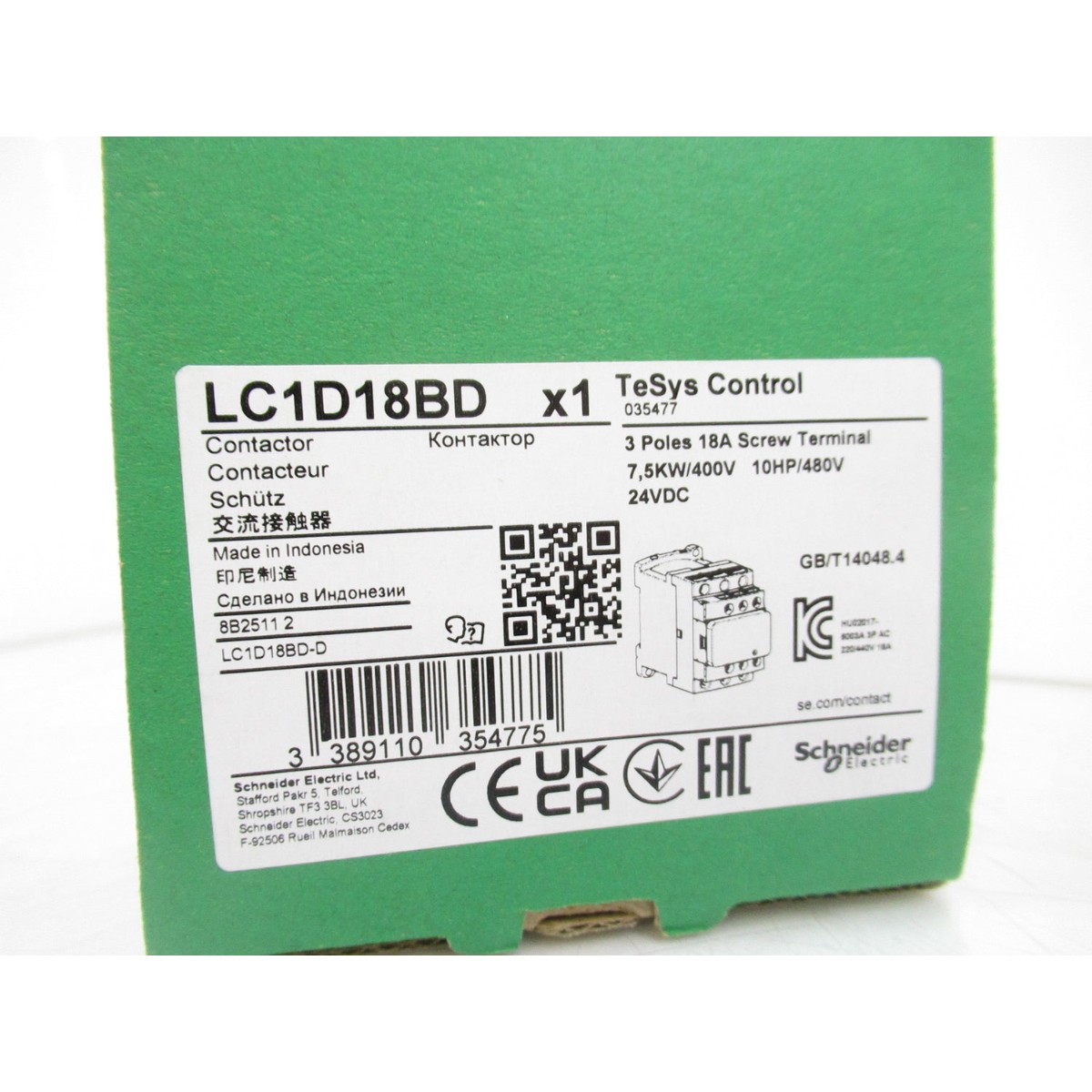

IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric

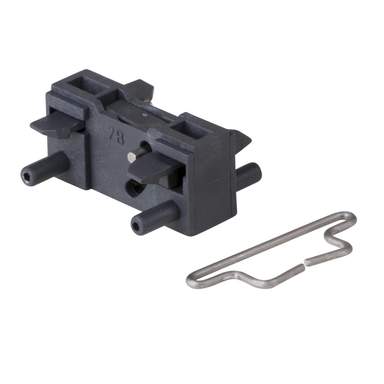

Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric

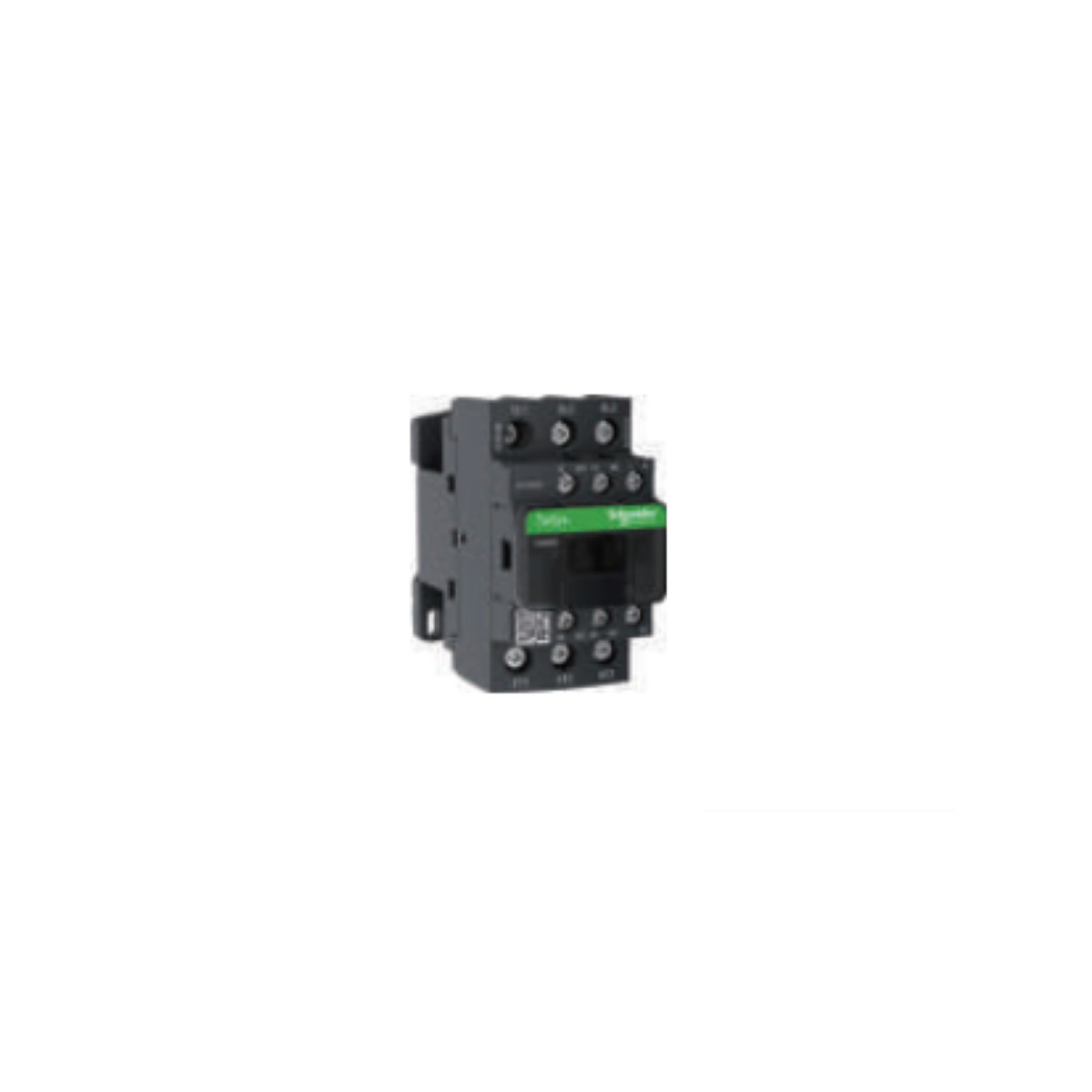

Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
ControlParts Global

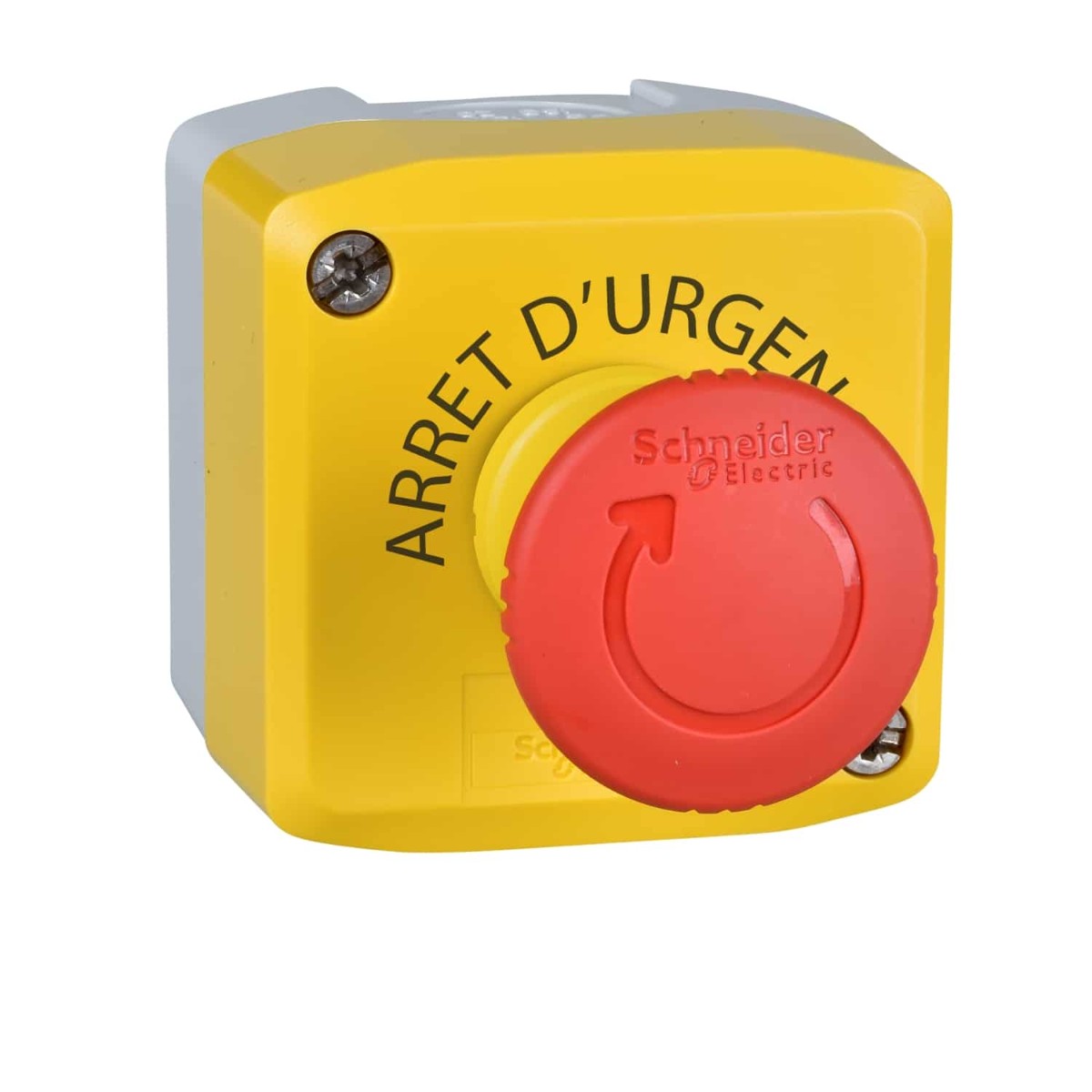

STOP PUSH BUTTONARRET URGENCE
CPG-0000035
Schneider Electric
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric
Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric
Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
Schneider Electric

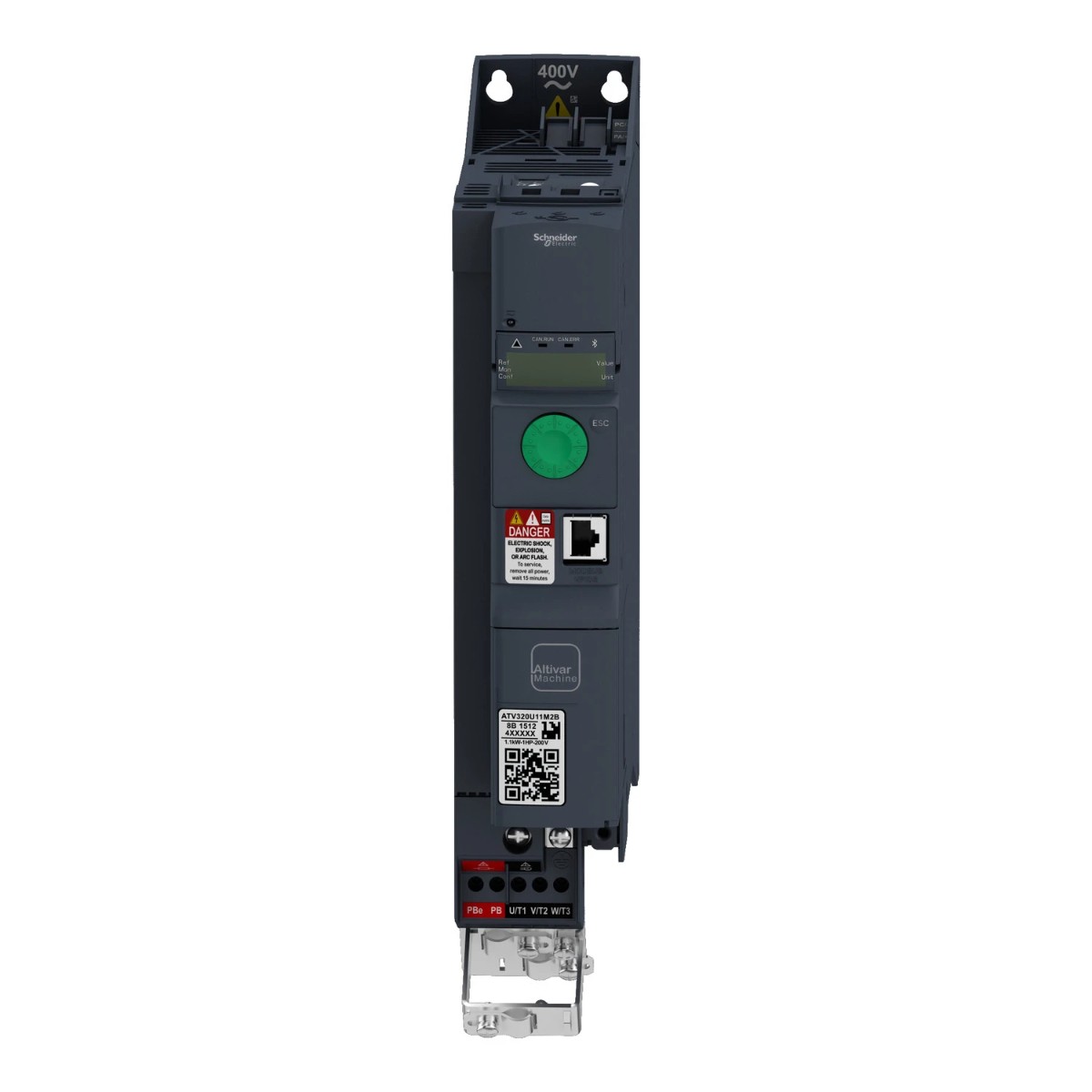

Altivar Machine ATV320 1.5 kWATV320U15N4B
