Schneider Electric

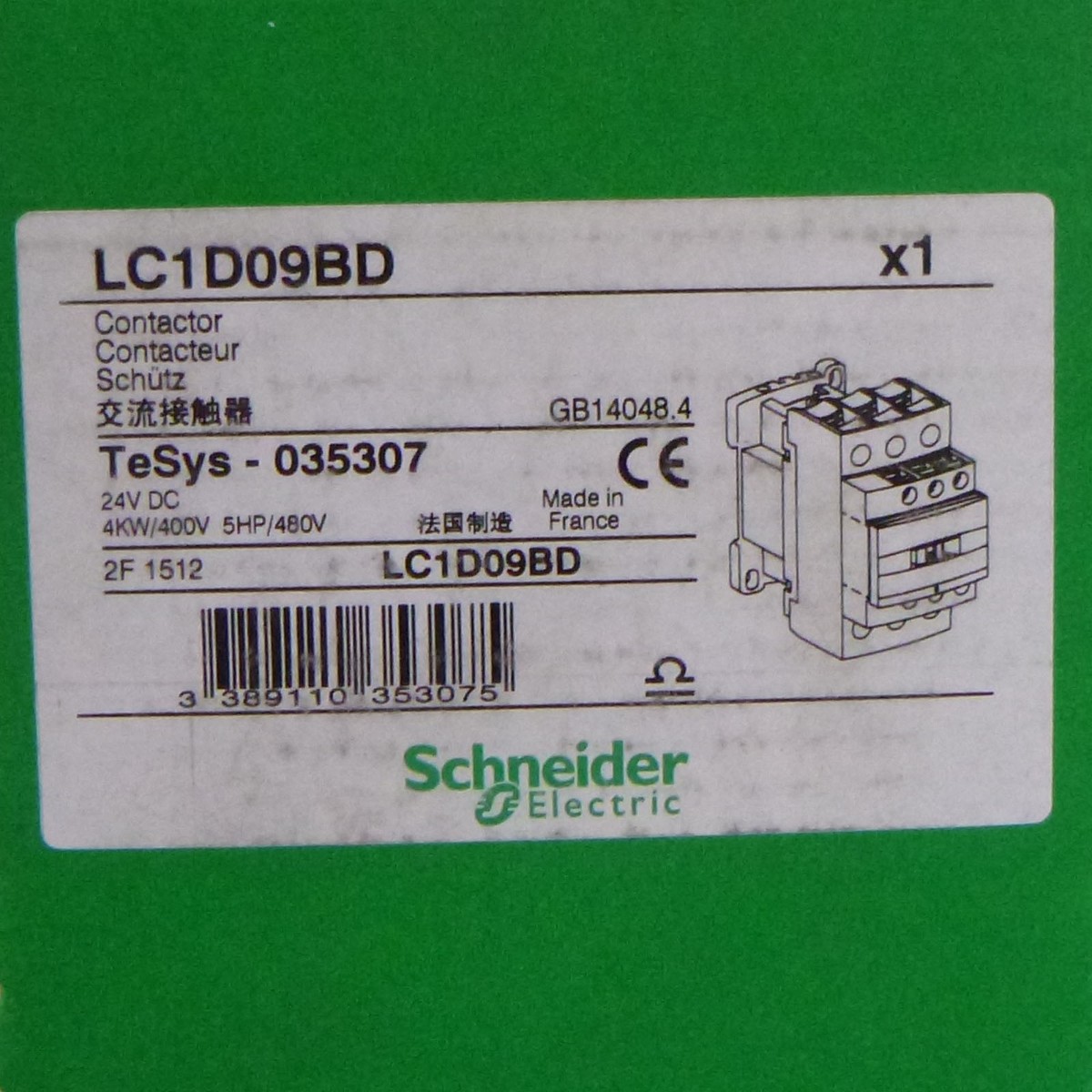

LC1D09BD
CPG number: CPG-0000028
IEC contactor from the TeSys Deca series, nonreversing, featuring 3 poles (3 NO) for motor control applications, rated for 9A AC-3/3e up to 690V, with a 24V DC coil and screw clamp terminals. It includes 1 NO + 1 NC built-in auxiliary contacts.
The LC1D09BD is an IEC TeSys Deca nonreversing contactor designed for motor control applications. It features 3 poles with 3 normally open (NO) power contacts and can handle up to 9A under AC-3/3e utilization category at 690V, equivalent to 4kW at 400V. The contactor is equipped with a 24V DC coil, which includes a transient suppressor module. Connection is facilitated by screw clamp terminals. It also provides 1 NO and 1 NC built-in auxiliary contacts, with the NC contact being mirror certified. The device is suitable for operating rates of up to 3600 cycles/hour and is available in an open style configuration.
| Product or Component Type | Contactor |
|---|---|
| Device Short Name | LC1D |
| Number of Poles | 3P |
| Power Pole Contact Configuration | 3 NO |
| Utilization Category | AC-3/3e |
| Coil Voltage | 24V DC |
|---|---|
| Motor Power (at 480VAC) | 5HP |
| Short-Circuit Current Rating (SCCR) | up to 100kA |
| Auxiliary Contacts | 1 NO + 1 NC (NC mirror certified) |
| Operating Rate | up to 3600 cycles/hour |
|---|
| Series | TeSys D |
|---|---|
| Product family | TeSys Deca |
| Product type | Contactor |
| Manufacturer status | unknown |
| Mounting type | Chassis Mount |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (New). Warranty terms are confirmed with the quote or order confirmation.
Schneider Electric

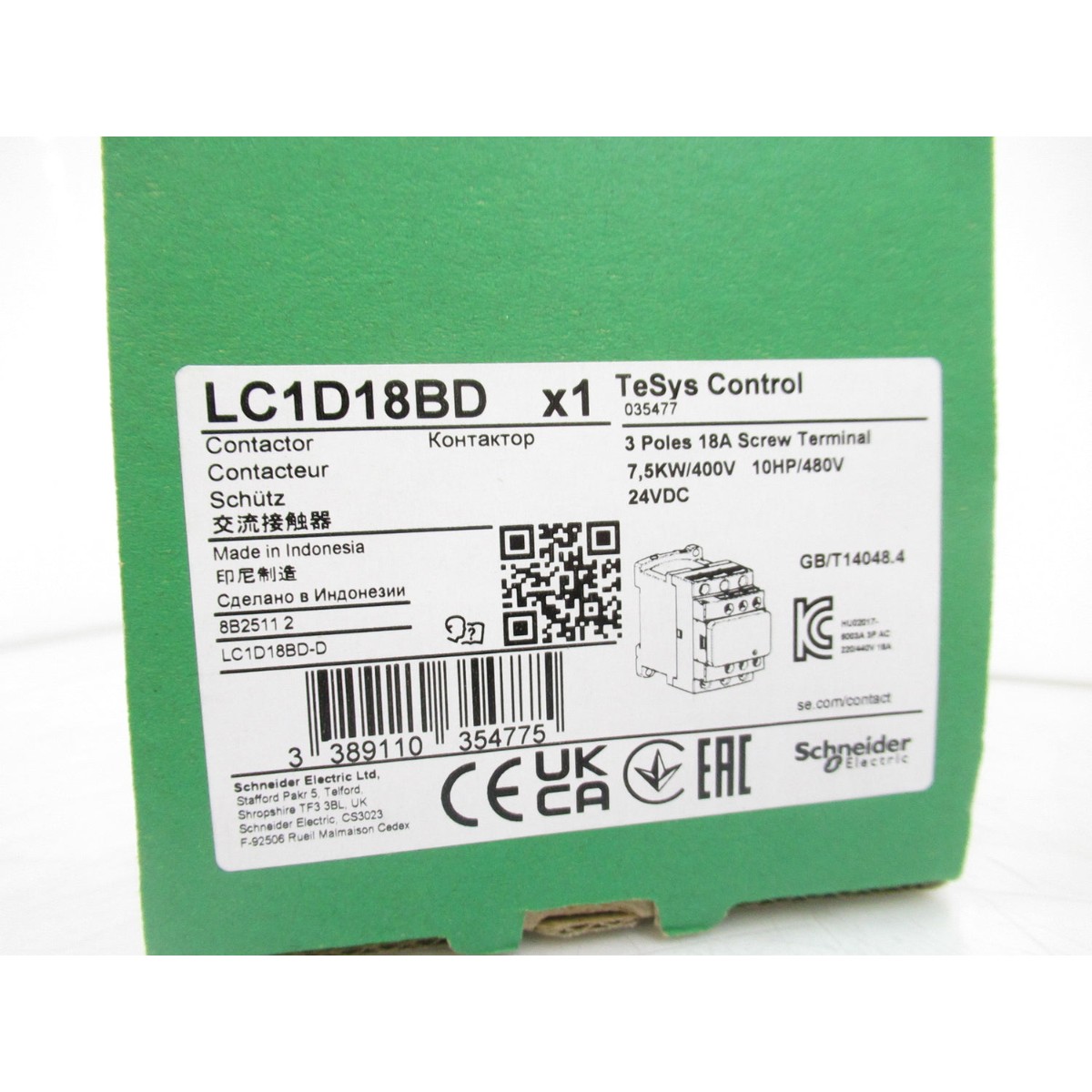

IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric

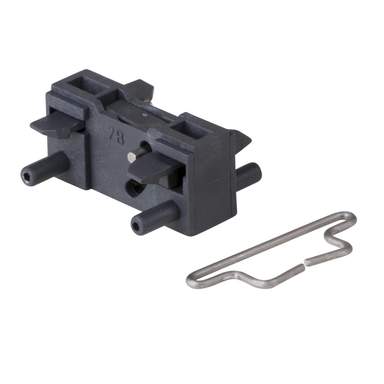

Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric

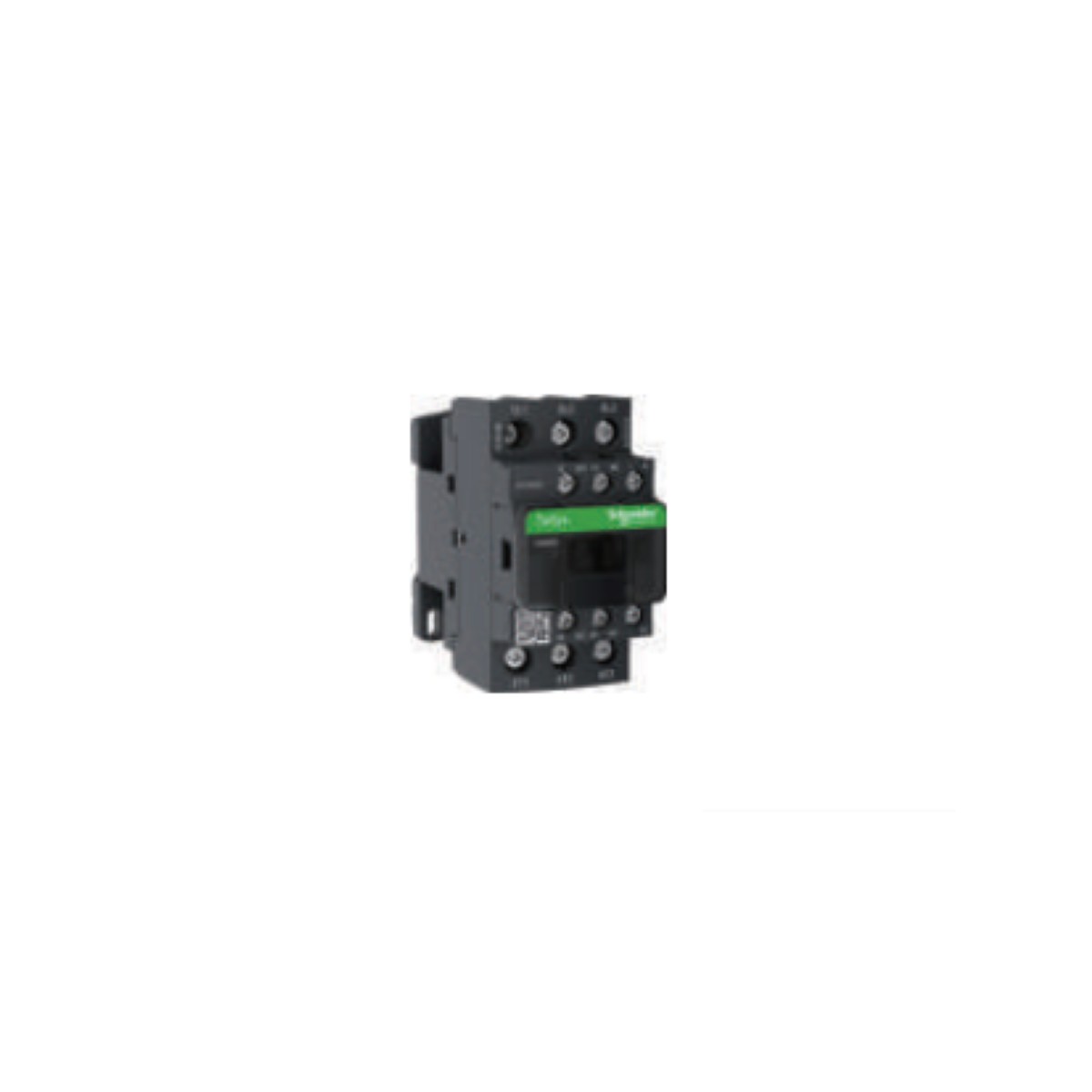

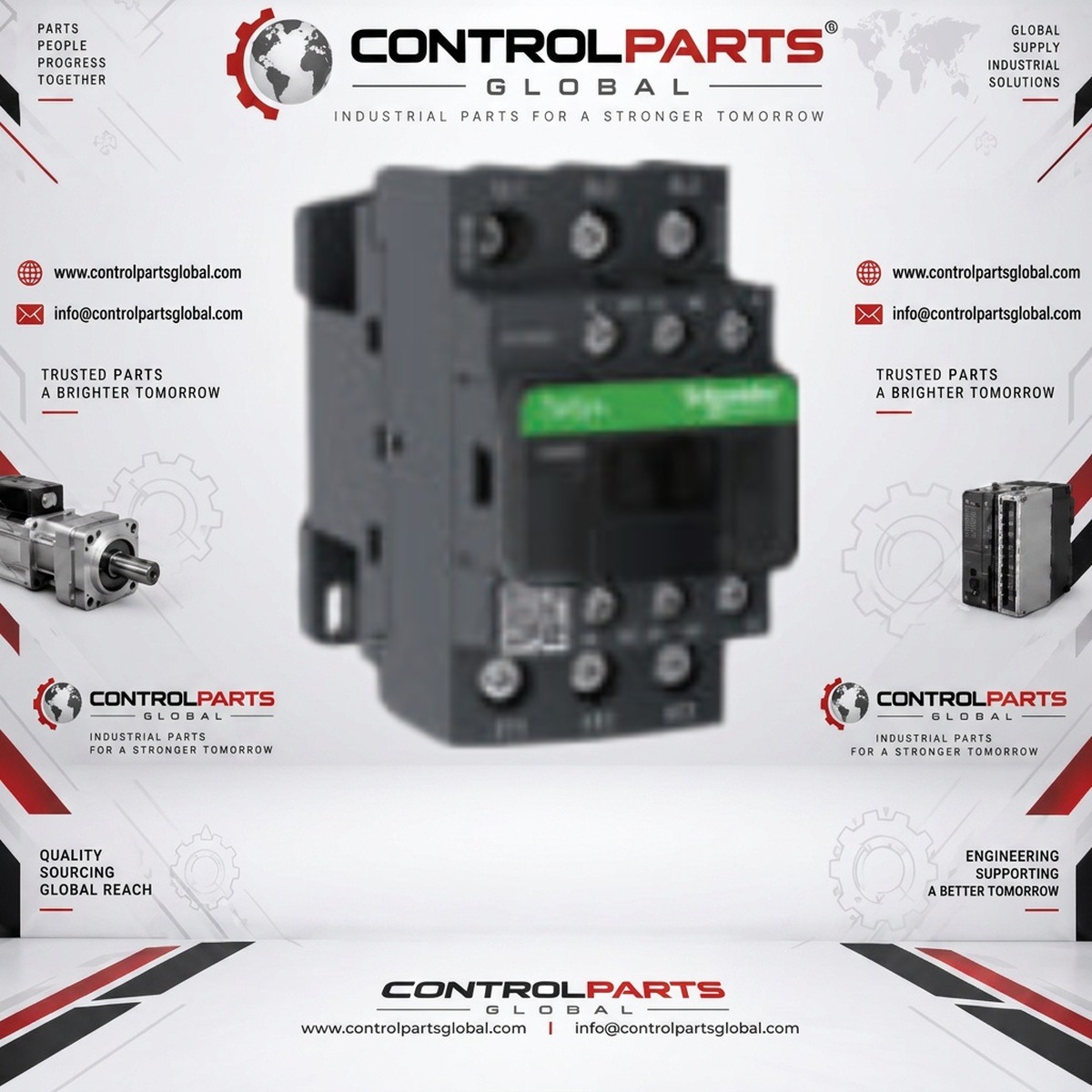

Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
ControlParts Global

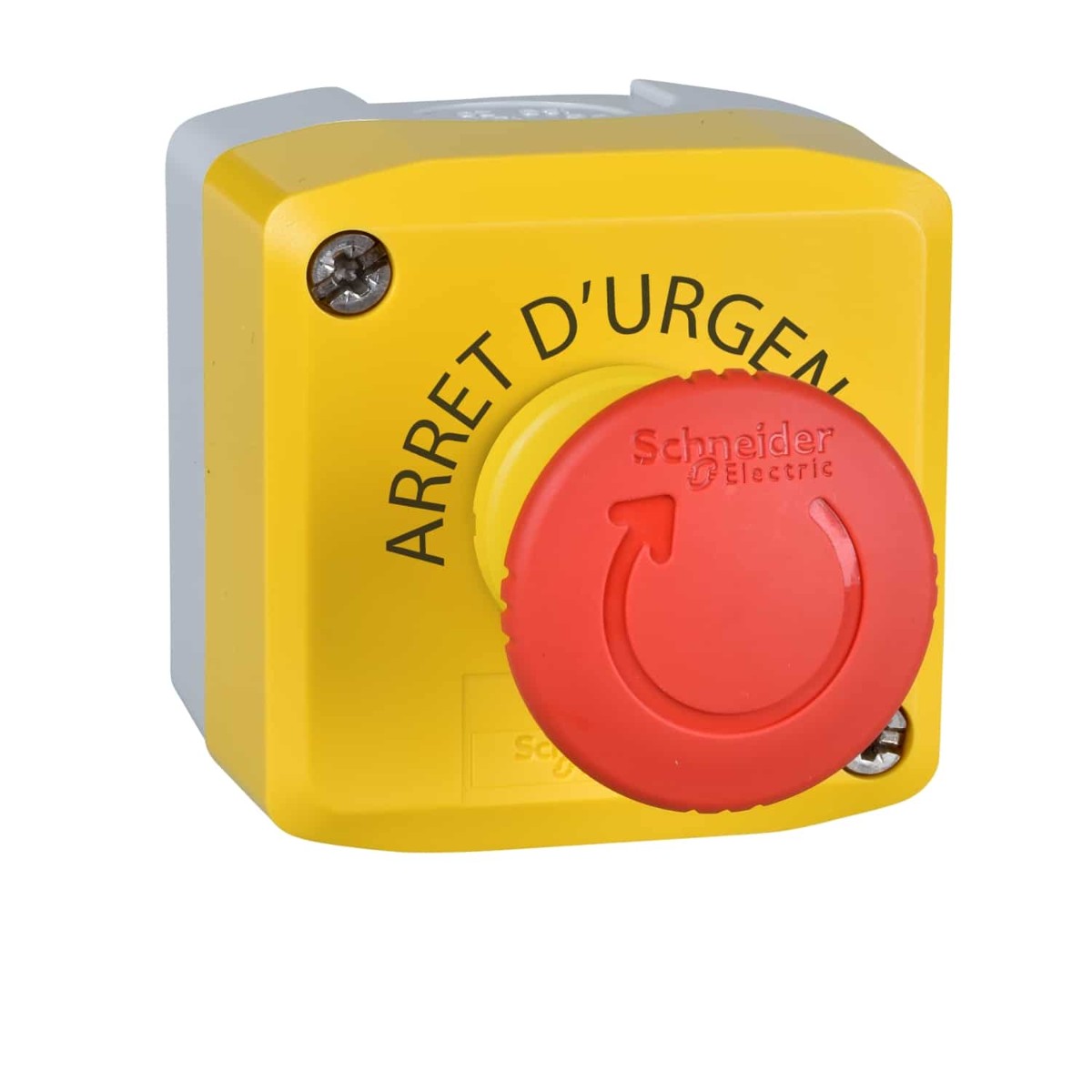

STOP PUSH BUTTONARRET URGENCE
CPG-0000035
Schneider Electric
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric
Mechanical interlockLAD9V2-A
CPG-0000032
The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
Schneider Electric
Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
Schneider Electric

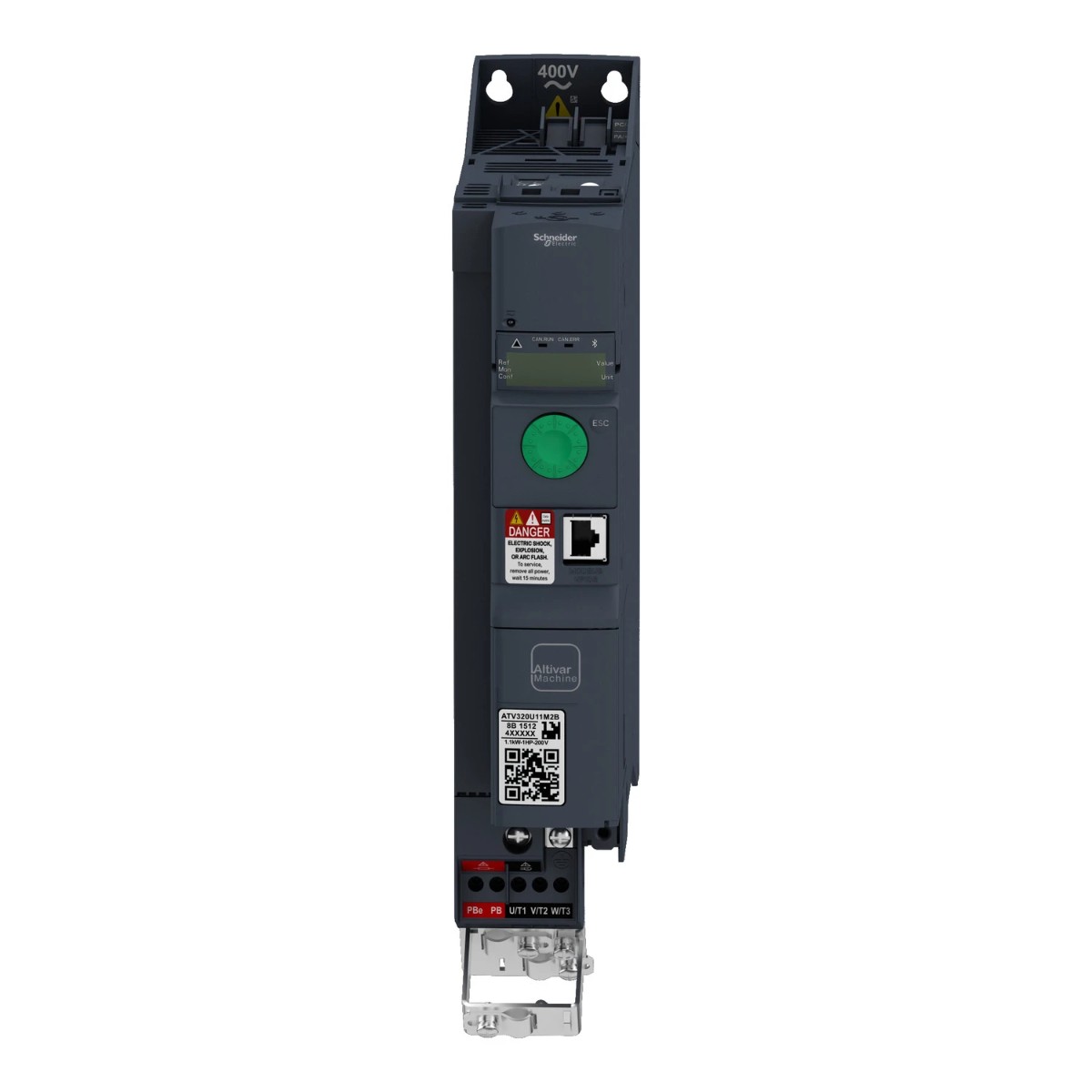

Altivar Machine ATV320 1.5 kWATV320U15N4B
