Schneider Electric
LAD9V2-A
CPG number: CPG-0000032

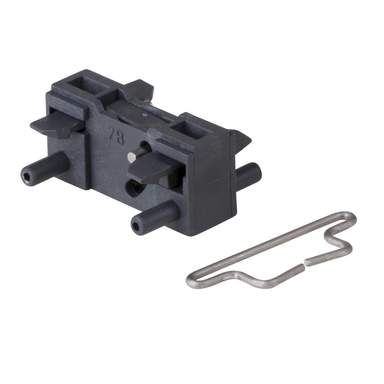

The LAD9V2 is a mechanical interlock for TeSys Deca contactors, specifically models LC1D09-D38 and LC1DT20-DT40. It is used for reversing and changeover assemblies.
The LAD9V2 is a mechanical interlock unit from Schneider Electric, part of the TeSys Deca range and TeSys D Series. It is designed for use with TeSys Deca contactors LC1D09-D38 and LC1DT20-DT40. This interlocking accessory facilitates reversing and changeover assemblies for 3-pole and 4-pole electrical circuits, providing mechanical interlocking without electrical interlocking. It features quick-connect connections and is Green Premium compliant, indicating RoHS/REACh compliance. The product weighs 0.04 kg.
| Model Number | LAD9 |
|---|---|
| Type | Mechanical Interlock |
| Interlocking Type | Mechanical |
| Poles | 3P, 4P |
| Electrical Circuit Type | Reversing, Changeover |
| Packaging Unit | 1 piece per package (PCE) |
| Packaging Unit Weight (PCE) | 11g |
| Packaging Unit | 10 pieces per package (BB1) |
| Packaging Unit Weight (BB1) | 138g |
| Series | TeSys Deca |
|---|---|
| Product family | TeSys D |
| Product type | Mechanical Interlock |
| Dimensions | 0.79 in H x 3.15 in W x 4.37 in L |
| Weight | 0.04 kg |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (New). Warranty terms are confirmed with the quote or order confirmation.
Schneider Electric

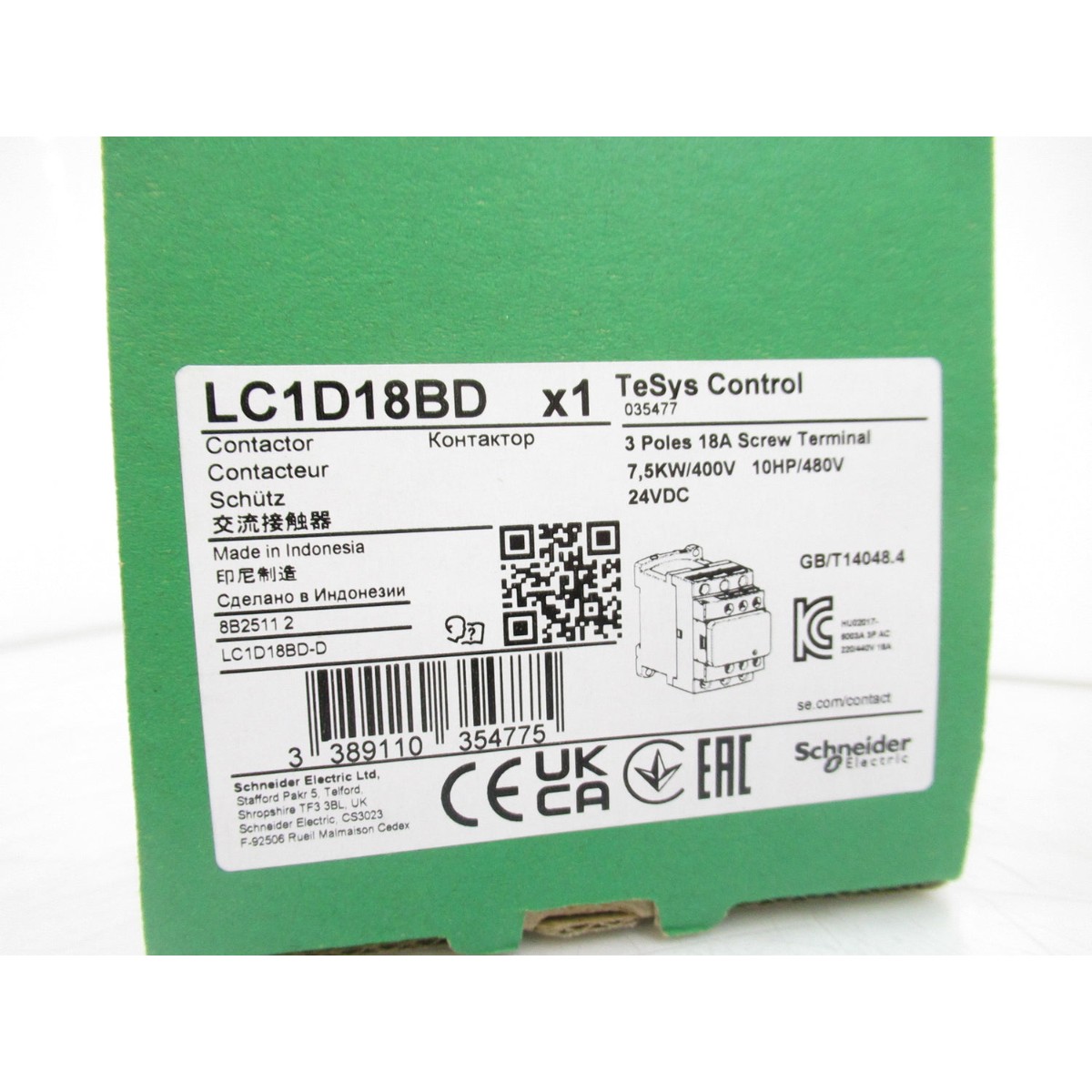

IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric

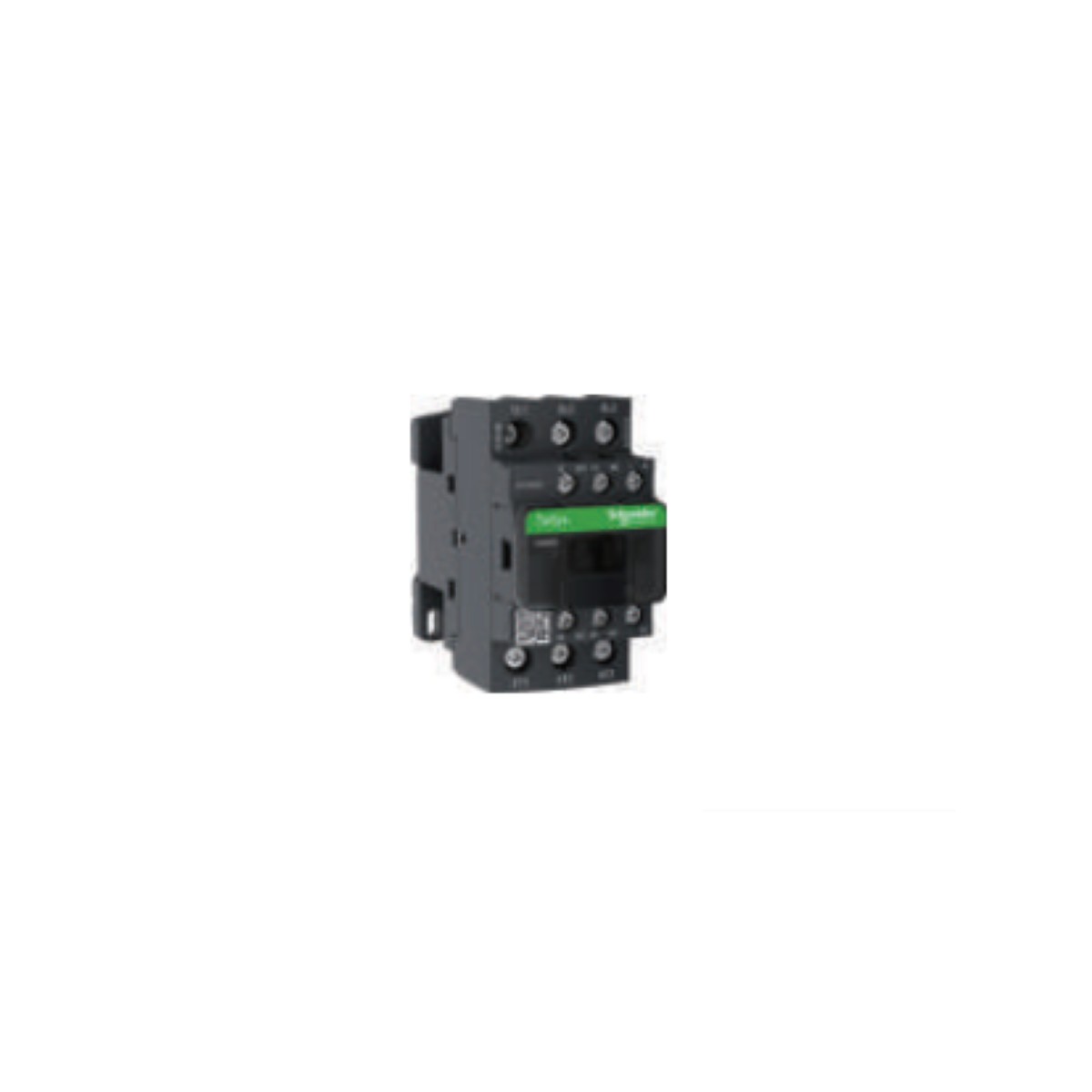

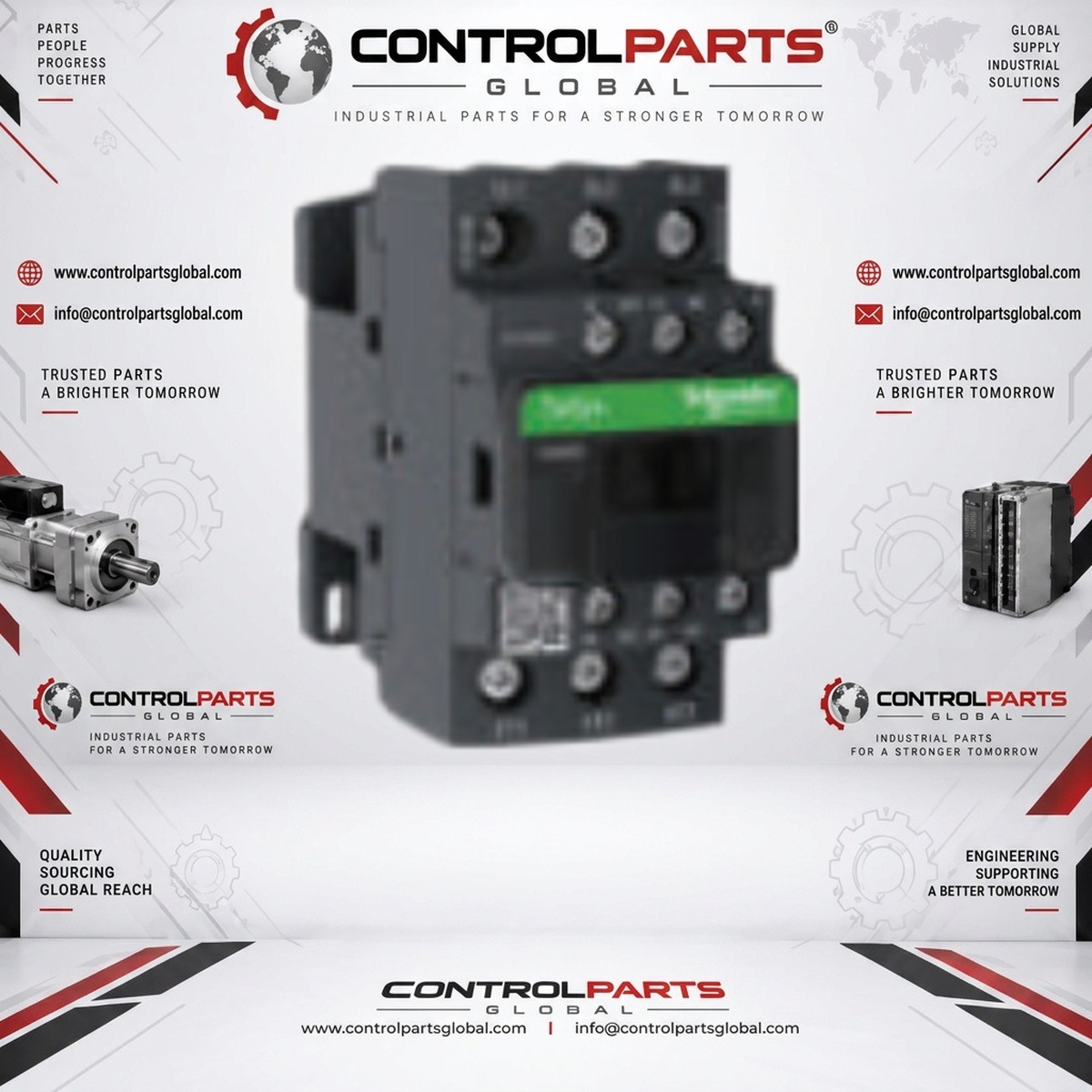

Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
ControlParts Global

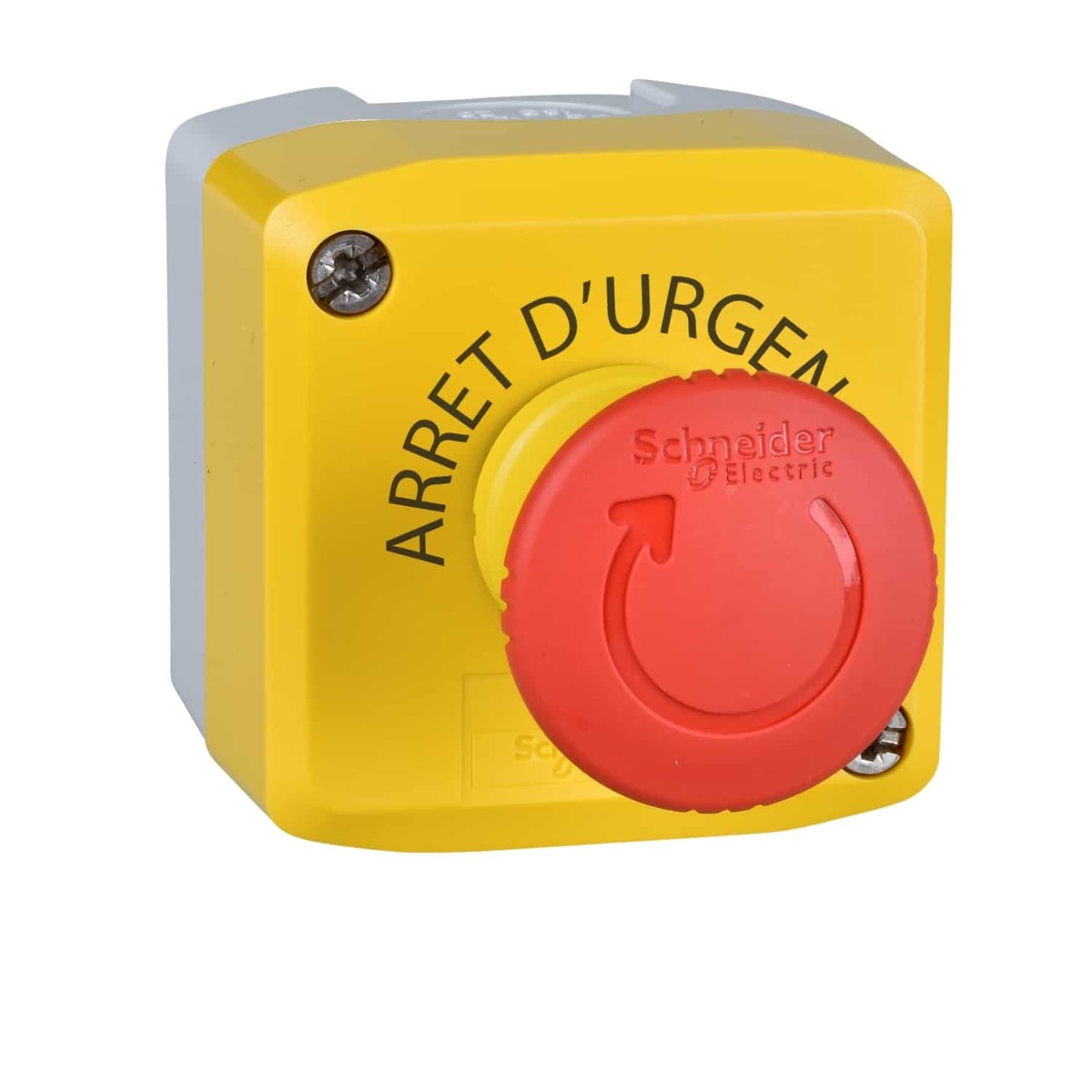

STOP PUSH BUTTONARRET URGENCE
CPG-0000035
Schneider Electric
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, openLC1D18BD
CPG-0000025
IEC contactor, TeSys Deca, nonreversing, with 3 poles (3 NO power poles), suitable for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V), features a 24V DC coil with built-in transient suppressor module, and 1NO+1NC built-in auxiliary contacts.
Schneider Electric
Contactor, TeSys Deca, 3P (3 NO), AC-3/AC-3e, 0 to 440V, 38A, 110VAC 50/60Hz coil, Screw terminalLC1D38F7C
CPG-0000030
TeSys Deca contactor with 3 poles (3 NO), suitable for AC-3/AC-3e applications from 0 to 440V, rated at 38A. Features a 110VAC 50/60Hz coil and screw terminals.
Schneider Electric

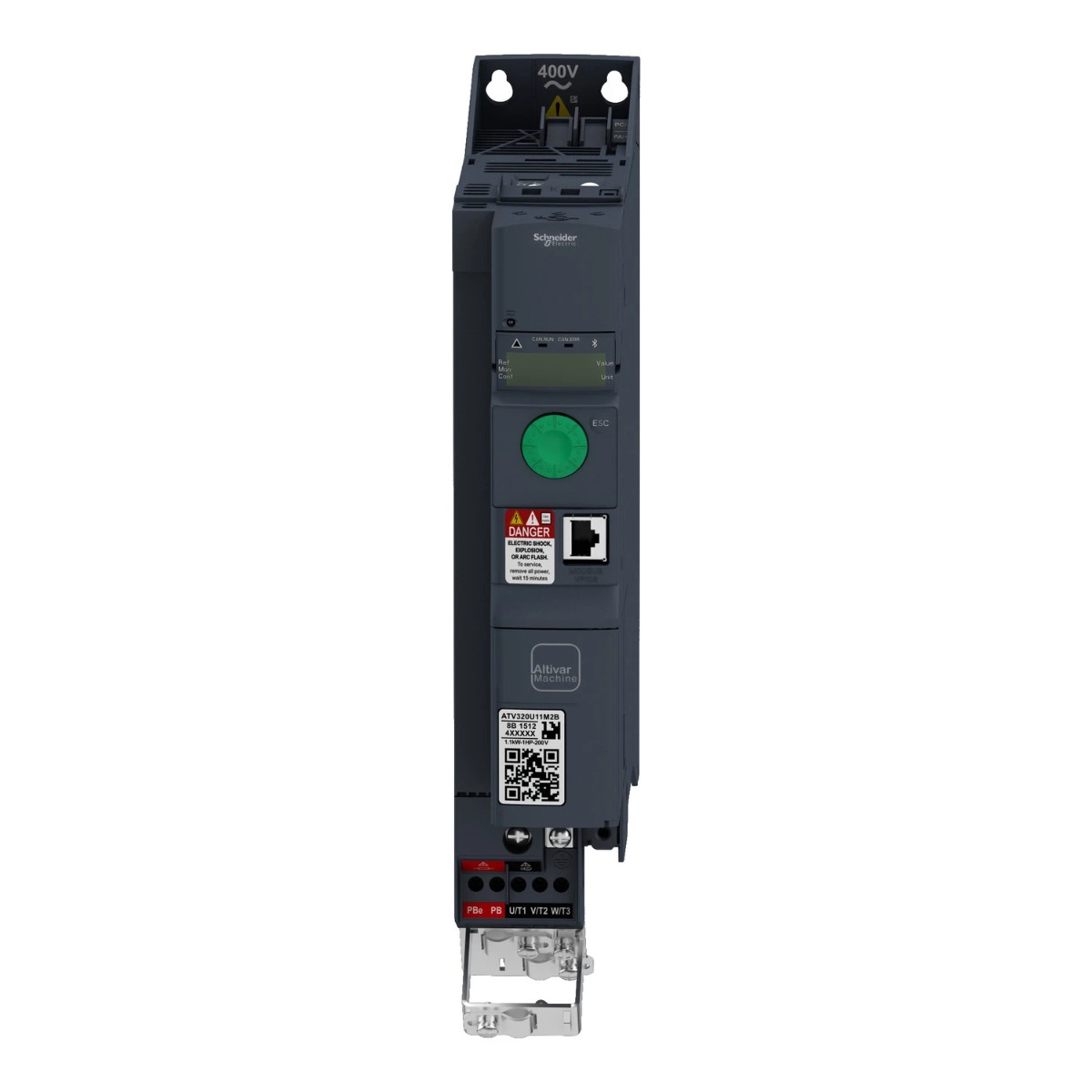

Altivar Machine ATV320 1.5 kWATV320U15N4B
