HEIDELBERG
00.785.1226
CPG number: CPG-0000115
Compatible / Alternate Part Numbers: DSCM24-2A · MKS3386/05 · SWFB24-3 · 00.782.1562
ControlParts Global also carries a large inventory of electronic parts, circuit boards, modules and components for printing and graphic arts equipment that are not all listed on our website. Send us your part number, machine brand, photos or any available information via Request a Quote — our team will check our inventory and our sources to offer you a solution at a competitive price.

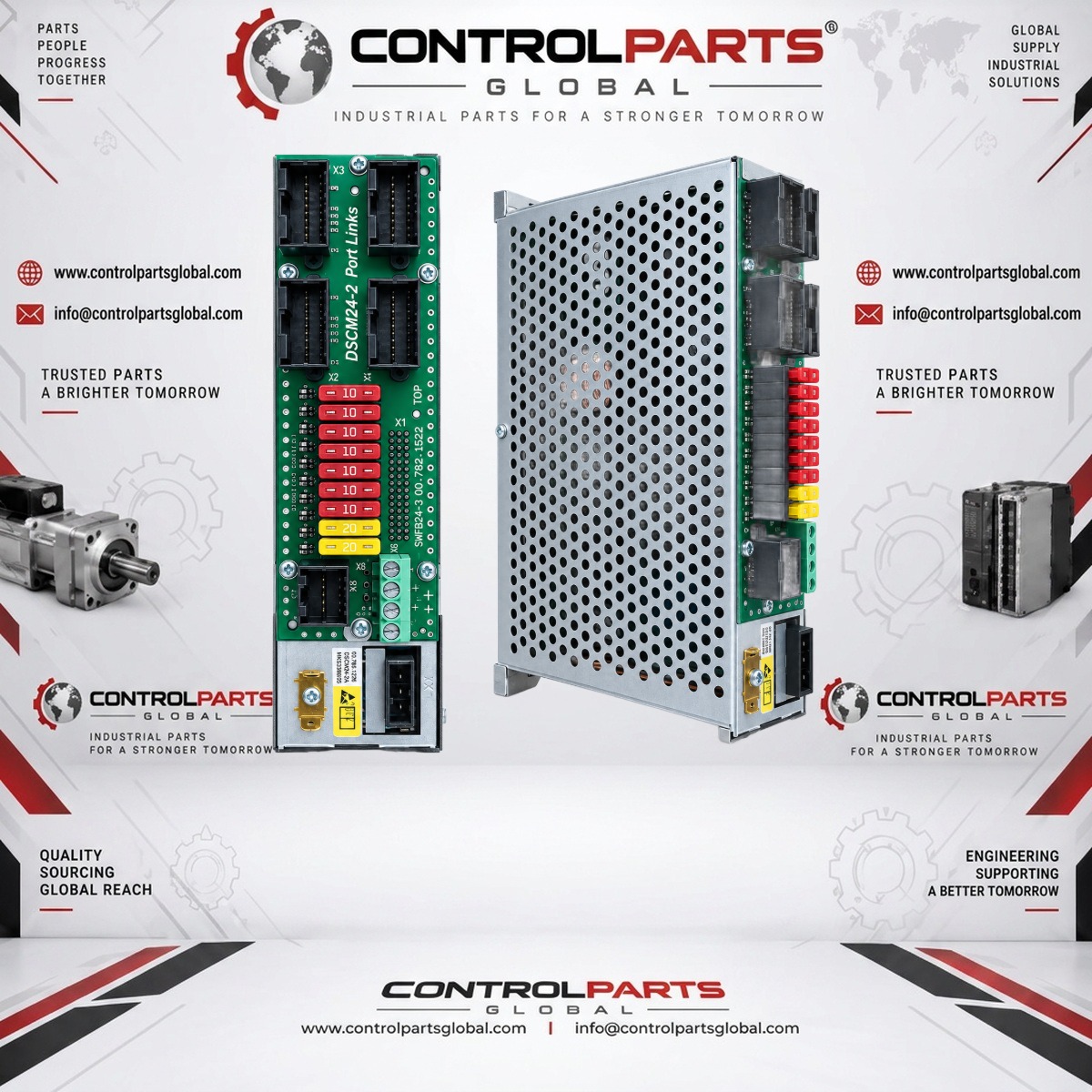

Heidelberg DSCM24-2 Port Links electronic module, part number 00.785.1226, model DSCM24-2A, with fused distribution board, multiple ribbon connectors (X1 to X8) and perforated metal enclosure.
Electronic port-links / distribution module for Heidelberg industrial printing equipment. The board is marked DSCM24-2 Port Links and carries the connectors X1, X2, X3, X4, X6, X7 and X8, a two-pole screw terminal and a row of plug fuses (7 x 10 A and 2 x 20 A as fitted). Labels on the unit show 00.785.1226, DSCM24-2A and MKS3386/05; the board is additionally silkscreened SWFB24-3 00.782.1562. The assembly is mounted in a perforated sheet-metal enclosure. Exact machine compatibility to be confirmed from the manufacturer reference.
| Type | Electronic port links / distribution module |
|---|---|
| Fuses | 7 x 10 A, 2 x 20 A (as fitted) |
| Model | DSCM24-2A |
| Connectors | X1, X2, X3, X4, X6, X7, X8 + 2-pole screw terminal |
| Application | Heidelberg industrial printing equipment — exact machine compatibility to be confirmed |
| Manufacturer | Heidelberg |
| Board marking | DSCM24-2 Port Links |
| Main reference | 00.785.1226 |
| Additional marking | SWFB24-3 00.782.1562 |
| Secondary reference | MKS3386/05 |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (New). Warranty terms are confirmed with the quote or order confirmation.
HEIDELBERG
Heidelberg RRM2 Electronic Board PCB – 00.781.480200.781.4802
CPG-0000096

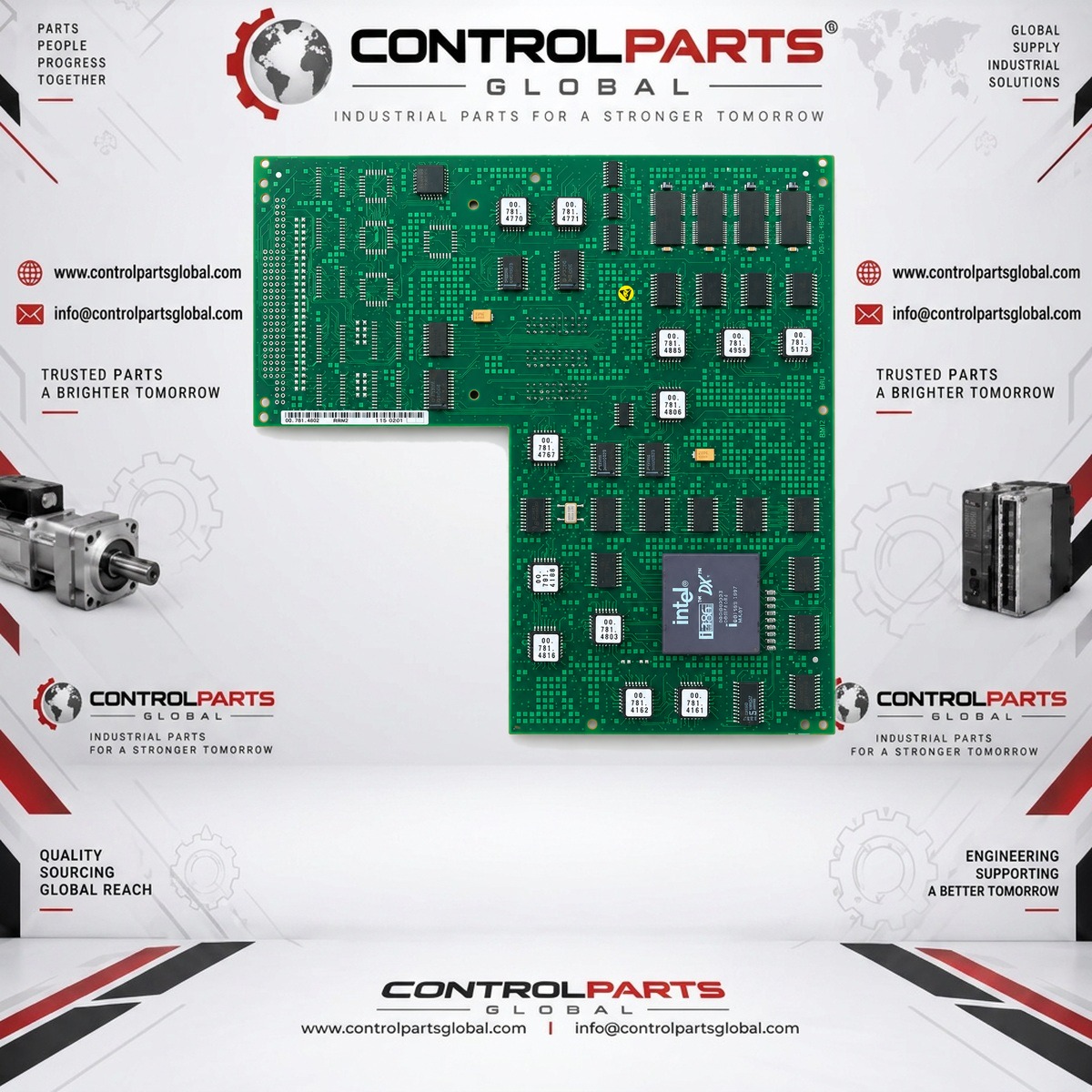

Heidelberg RRM2 electronic circuit board, part number 00.781.4802. Industrial PCB for Heidelberg printing press control and electronic systems.
HEIDELBERG

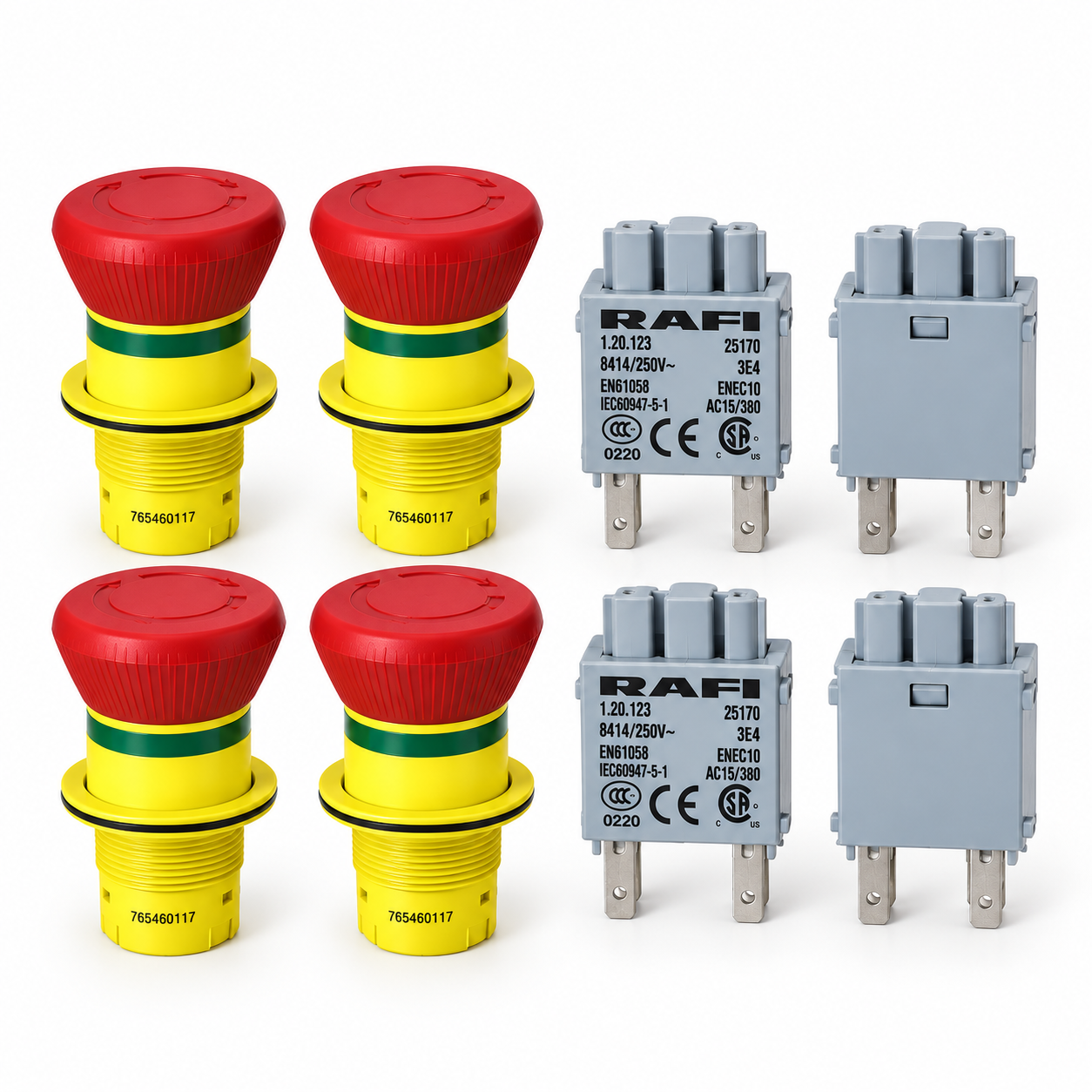

Heidelberg Emergency Stop Push Button with RAFI Contact Block1.20.123
CPG-0000121
HEIDELBERG
Grafix HDM 61.167.1917/01 Control Panel / Operator ModuleHDM 61.167.1917/01
CPG-0000110

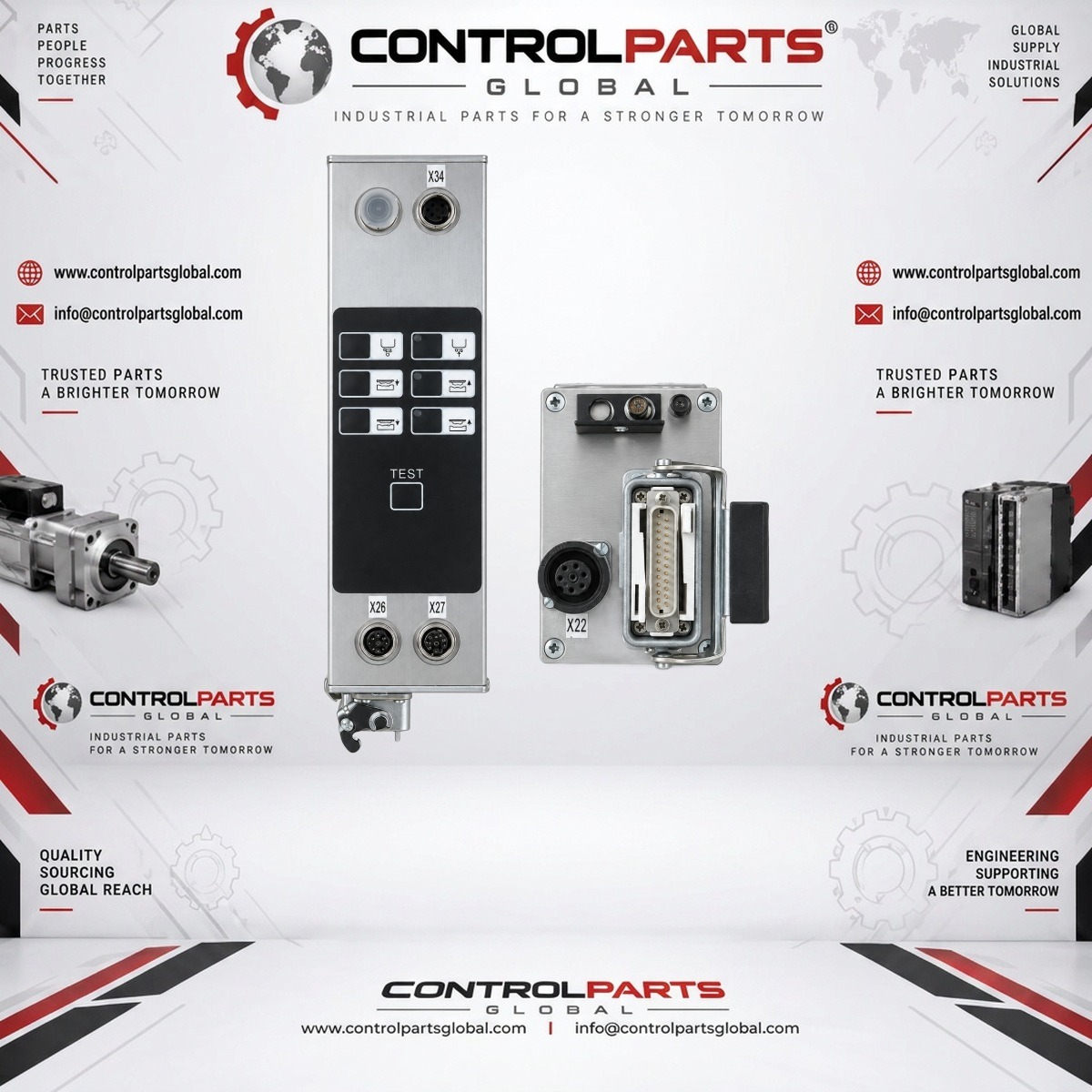

Industrial control/operator module manufactured by GRAFIX GmbH (Stuttgart, Germany), reference HDM 61.167.1917/01. Front panel with function keys, TEST button and connectors X26, X27, X34. Associated with Heidelberg printing equipment.
HEIDELBERG
Heidelberg Brake Assembly — 24 V — 220 Nm61.101.2022/01
CPG-0000097

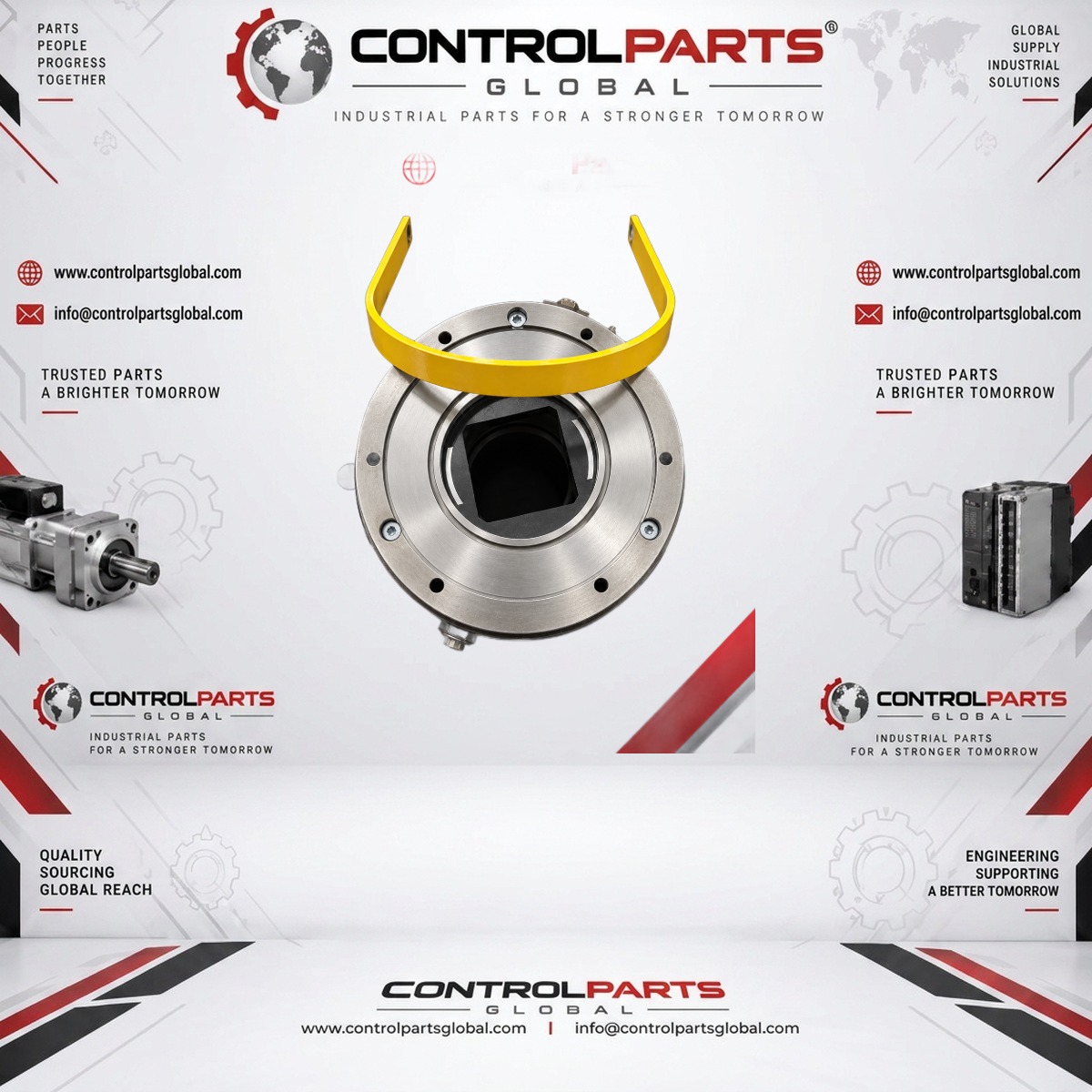

Binder/Kendrion electromagnetic brake, Type 77 60019A15, 24 V / 220 Nm, for Heidelberg printing press applications.
