HEIDELBERG
HDM C7.164.1545/02
CPG number: CPG-0000111
ControlParts Global also carries a large inventory of electronic parts, circuit boards, modules and components for printing and graphic arts equipment that are not all listed on our website. Send us your part number, machine brand, photos or any available information via Request a Quote — our team will check our inventory and our sources to offer you a solution at a competitive price.

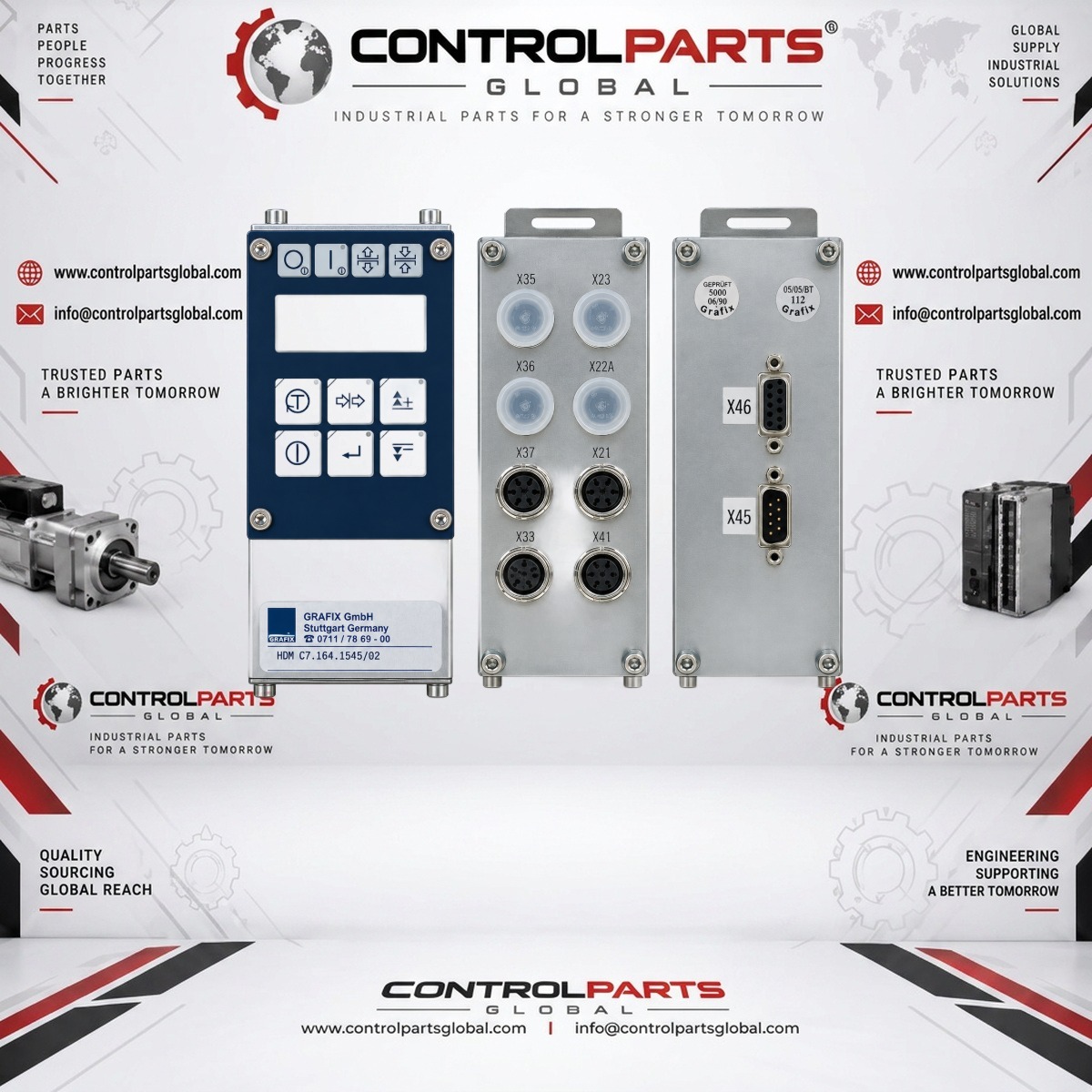

Industrial Grafix control module with LCD screen, built-in keypad and multiple rear connectors, used on Heidelberg / Grafix printing equipment.
This industrial control module is manufactured by GRAFIX GmbH, Stuttgart Germany, with the reference visible on the nameplate: HDM C7.164.1545/02. The module includes a front panel with an LCD screen, several control keys, a rugged metal enclosure, and multiple industrial connectors on the rear faces. It is a control / operator interface component intended for an industrial printing application. Exact machine compatibility must be confirmed from the manufacturer reference, but the product is classified under Printing / Heidelberg.
| Type | Industrial control module / operator interface / control panel |
|---|---|
| Phone | 0711 / 78 69 - 00 |
| Location | Stuttgart Germany |
| Application | Heidelberg / Grafix printing equipment — exact machine compatibility to be confirmed |
| Manufacturer | GRAFIX GmbH |
| Connectors (DB face) | X45, X46 |
| Manufacturer reference | HDM C7.164.1545/02 |
| Connectors (circular face) | X33, X36, X35, X27, X28A, X28B, X34, X28C |
Shipping from Canada, USA and international supplier locations. Costs are calculated at checkout or confirmed on your quote.
Condition stated per item (Other). Warranty terms are confirmed with the quote or order confirmation.
HEIDELBERG

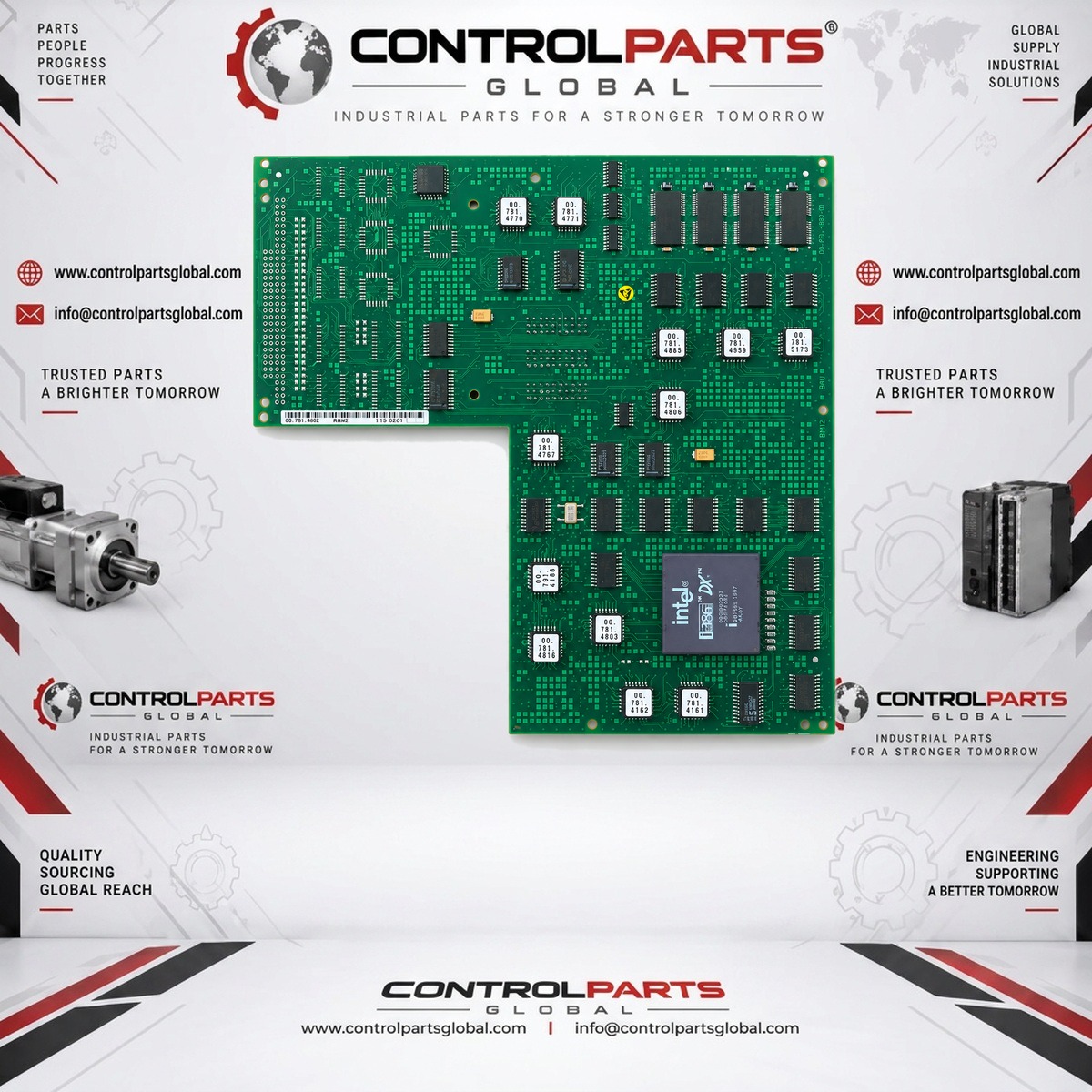

Heidelberg RRM2 Electronic Board PCB – 00.781.480200.781.4802
CPG-0000096
Heidelberg RRM2 electronic circuit board, part number 00.781.4802. Industrial PCB for Heidelberg printing press control and electronic systems.
HEIDELBERG

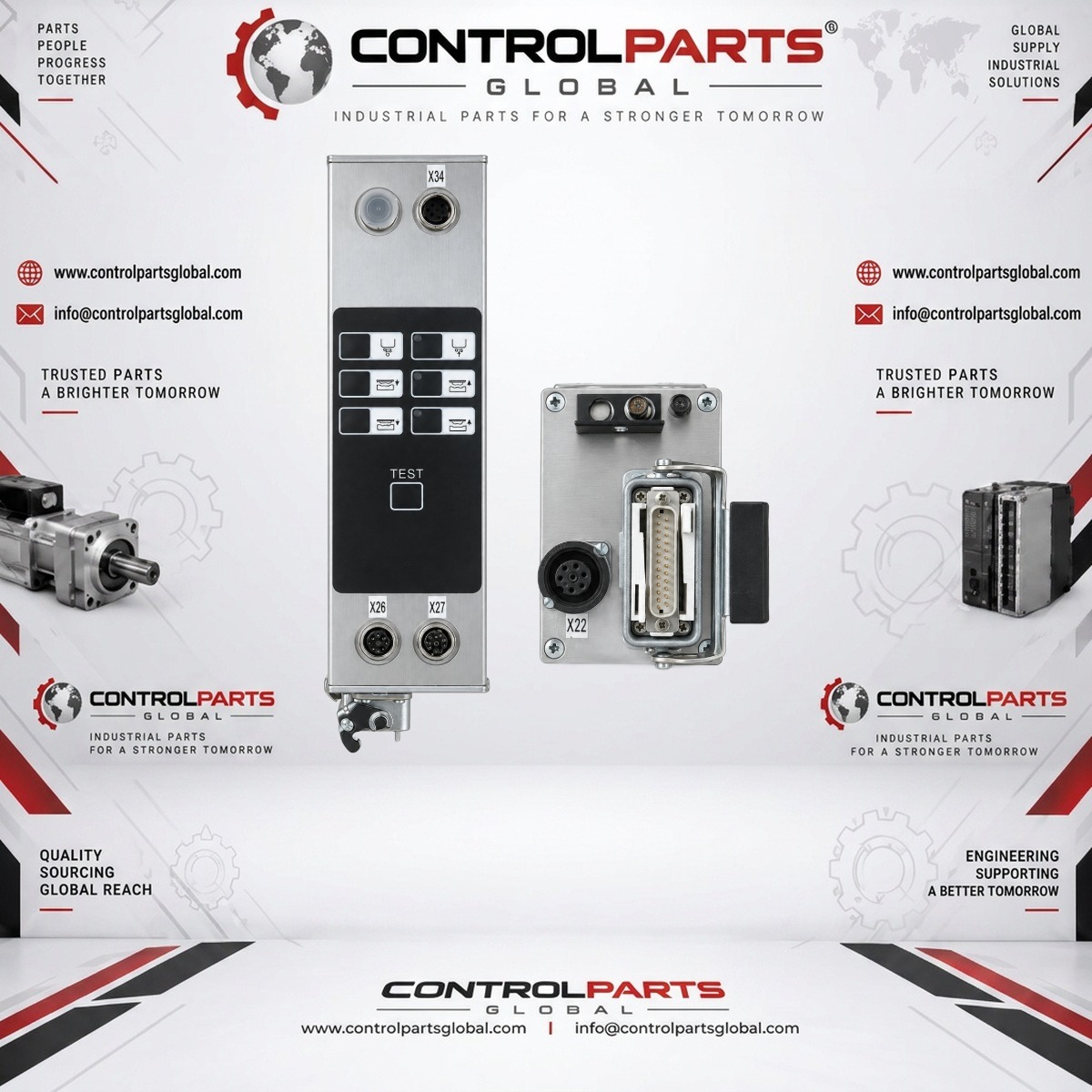

Grafix HDM 61.167.1917/01 Control Panel / Operator ModuleHDM 61.167.1917/01
CPG-0000110
Industrial control/operator module manufactured by GRAFIX GmbH (Stuttgart, Germany), reference HDM 61.167.1917/01. Front panel with function keys, TEST button and connectors X26, X27, X34. Associated with Heidelberg printing equipment.
HEIDELBERG

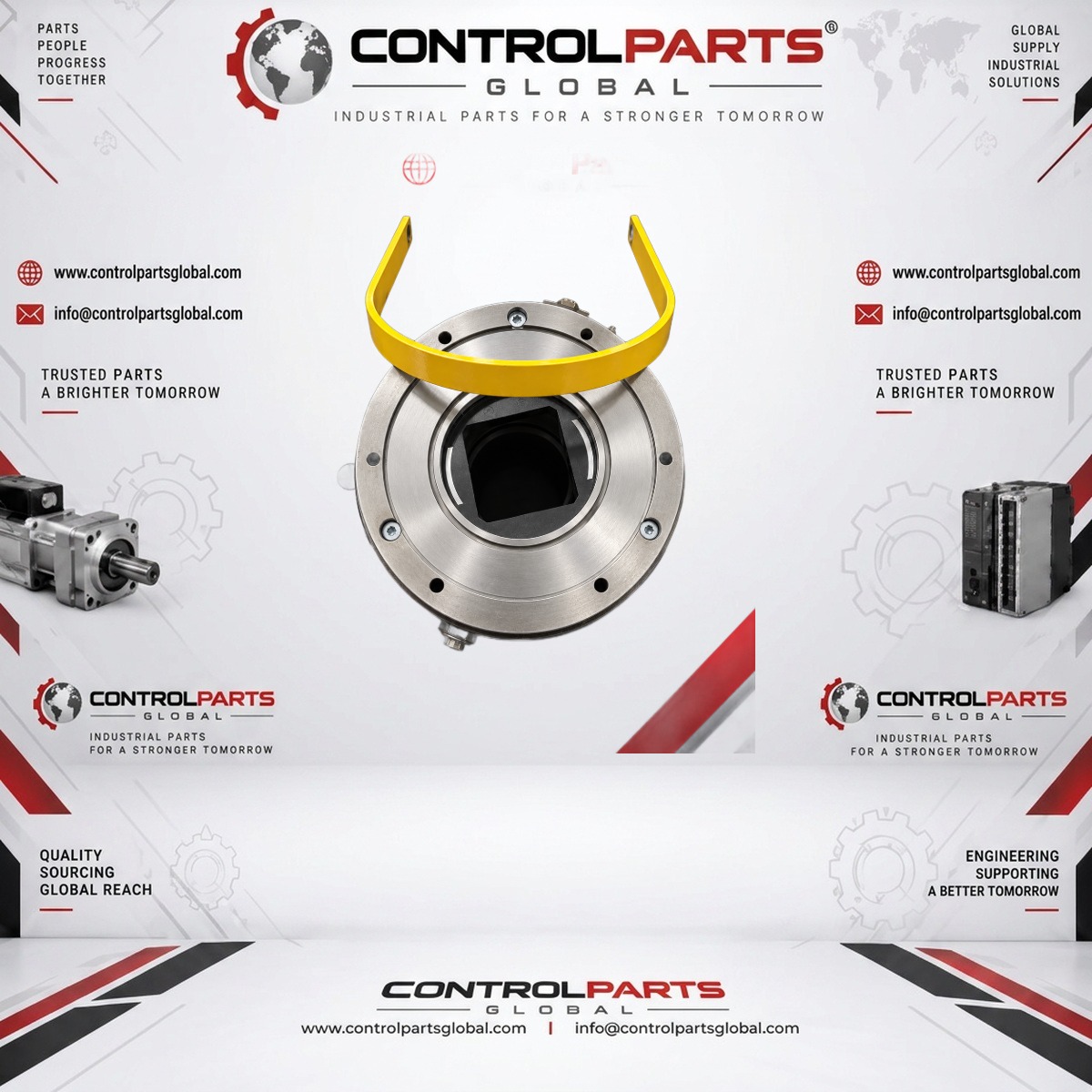

Heidelberg Brake Assembly — 24 V — 220 Nm61.101.2022/01
CPG-0000097
Binder/Kendrion electromagnetic brake, Type 77 60019A15, 24 V / 220 Nm, for Heidelberg printing press applications.
HEIDELBERG

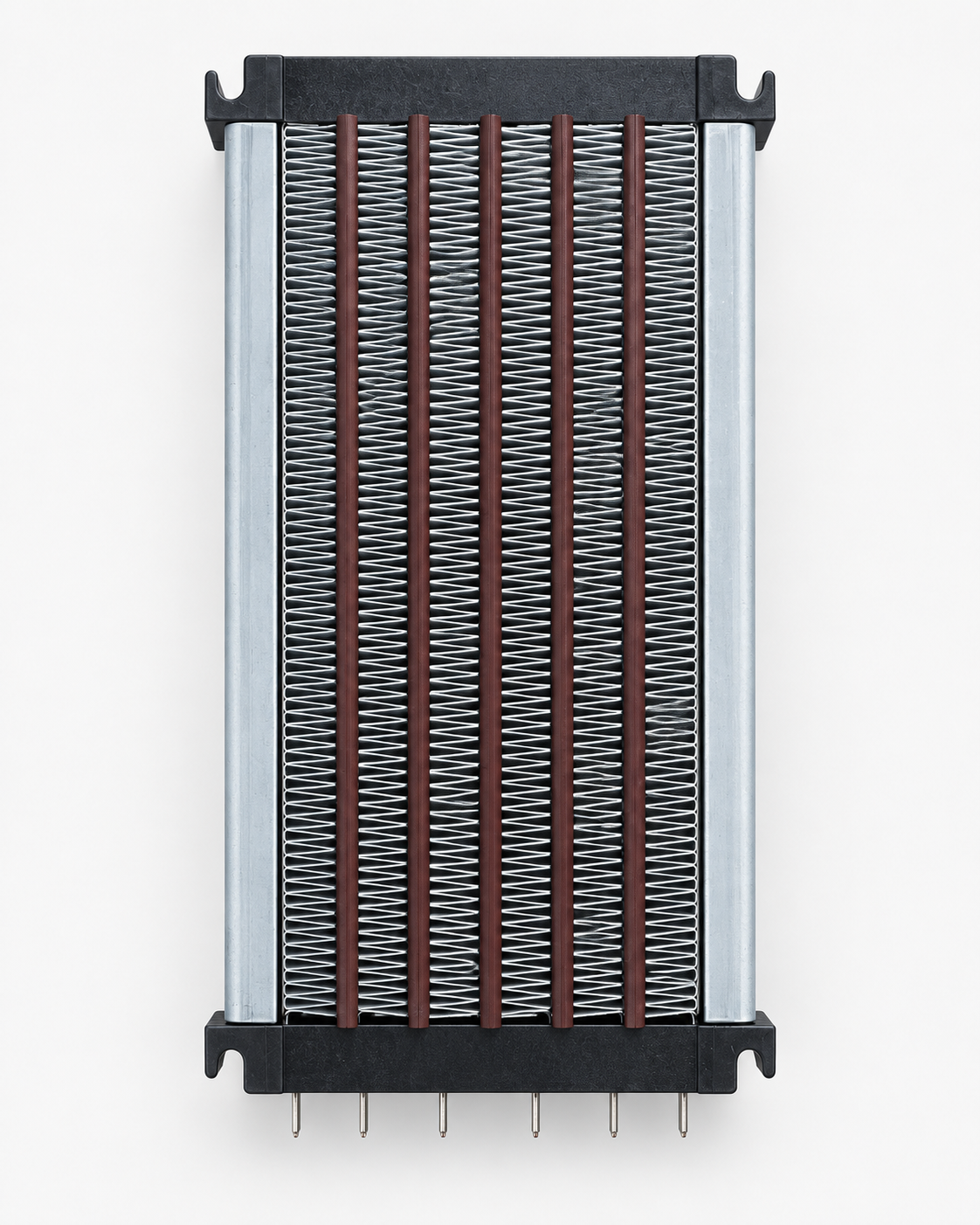

Heidelberg Heating Element HR04-25/18-400C7.170.0451/01
