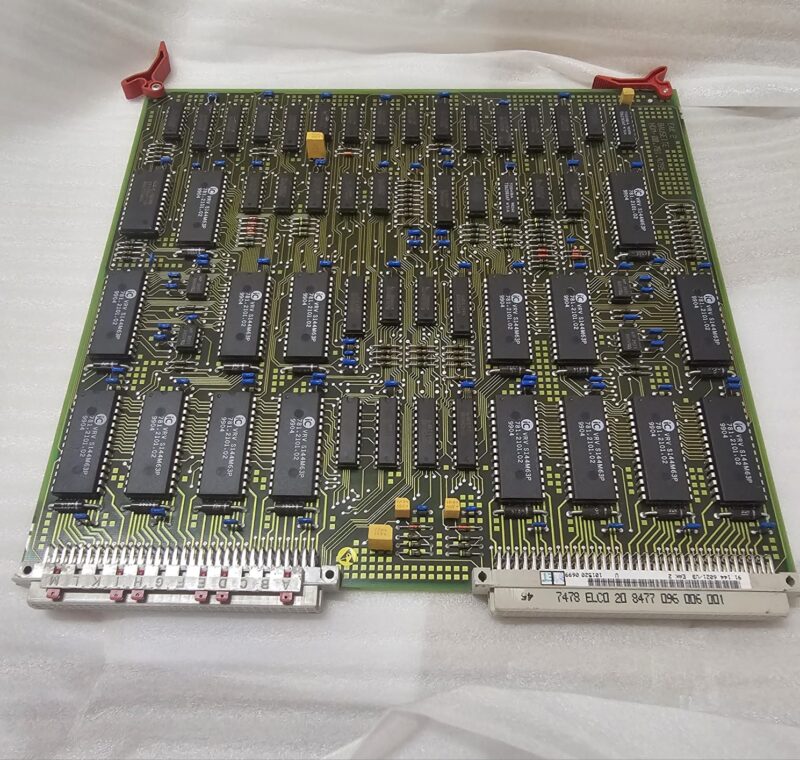

EAK2 Electronic Control Board

Product description

The EAK2 Electronic Control Board, part number 00.781.4795, is an electronic PCB manufactured by Heidelberg for use in various Heidelberg printing machines. It is designed for precise control within press systems.

The EAK2 Electronic Control Board, identified by part number 00.781.4795, is a critical electronic Printed Circuit Board (PCB) utilized in Heidelberg printing presses. This board functions as a component within the press control systems of models such as the SM102, SM52, SM74, CD102, and CD74. It is essential for managing and controlling various operations within the printing machine. The board features a double-sided FR4 PCB material with dimensions of 150x100mm, incorporating both SMT and through-hole components. Its design emphasizes high precision, reliable operation, and durability, ensuring easy integration and a long lifespan in demanding industrial environments. It operates within a temperature range of 0-50°C and has a weight of 50g.

Key features

• Electronic PCB for press control systems
• Double-sided FR4 PCB construction
• Dimensions: 150mm x 100mm
• Weight: 50g
• Operating temperature: 0-50°C
• High precision and reliable operation
• Durable design with long lifespan

Technical specifications

Typical applications

• Heidelberg SM102 offset printing machines
• Heidelberg SM52 offset printing machines
• Heidelberg SM74 printing machines
• Heidelberg CD102 printing machines
• Heidelberg CD74 printing machines
• Sourcing, maintenance, and replacement in original installations
